Maxpro 200 Plasma Consumables: Technical Guide For Hypertherm Systems

The Hypertherm MAXPRO200 represents a pinnacle in high-amperage air plasma cutting technology. Maintaining peak performance in such a demanding environment necessitates a deep understanding of the consumable stack's interplay. This guide provides a technical overview of the key components and their synergistic operation within the MAXPRO200 system.

Technical Breakdown of Core Components

The plasma cutting process relies on ionizing a gas to create a conductive path. The consumables are responsible for constricting and focusing this energy with extreme precision.

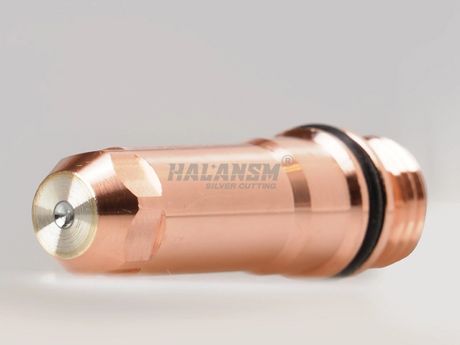

• Electrode (Contact Tip / Cathode):​ Typically fabricated from high-purity copper with a hafnium insert, the electrode serves as the cathode. Under extreme thermal loads, the hafnium generates a stable, high-intensity plasma arc. The integrity of this insert is paramount; pitting or erosion directly impacts cut quality and piercing consistency.

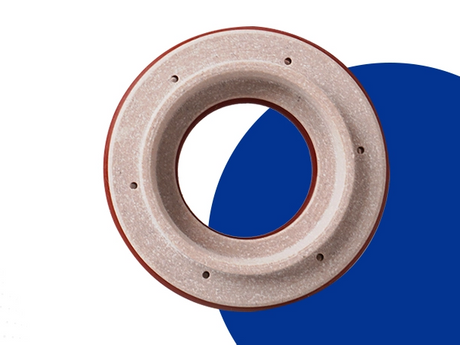

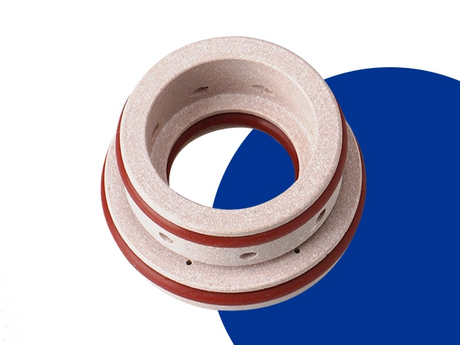

• Swirl Ring (Vortex Flow Guide):​ This component is critical for gas dynamics. Its precisely machined internal channels force the shielding gas into a helical vortex. This serves two purposes: first, it centrifugally cools the exposed portion of the electrode; second, it mechanically centers the plasma arc within the nozzle orifice, preventing arc wandering and subsequent damage to the nozzle.

• Nozzle (Anode / Orifice):​ Acting as the anode, the precision-machined copper nozzle focuses the high-velocity plasma stream into a fine, cohesive jet. Any deviation in the concentricity or surface finish of the nozzle bore can lead to arc instability, excessive dross formation, and a widened kerf.

Application Matrix: OEM Cross-Reference & Gas Configurations

Different industrial applications demand specific gas mixtures. The MAXPRO200 platform is highly versatile, and selecting the correct consumable set for your gas type is crucial for safety and performance.

HALANSM® Engineering Advantages: The Silver Cutting™ Edge

While the MAXPRO200 is engineered for robustness, the quality of the consumables dictates the economic efficiency of each cut. HALANSM® addresses common failure points in the following ways:

1. Advanced Surface Integrity:​ Standard manufacturing processes can leave micro-scratches or burrs inside the swirl ring and nozzle. HALANSM® employs a proprietary Silver Cutting™ surface finishing process. This ultra-polishing technique ensures a mirror-like internal bore, minimizing electrical arcing to the sidewalls and extending the service life of both the nozzle and electrode.

2. Thermal Dispersal Architecture:​ Utilizing a high-conductivity copper alloy matrix, HALANSM® components are designed to dissipate heat rapidly. This prevents localized melting of the nozzle tip during high-current piercing operations, ensuring a consistent cut height and reducing the risk of torch meltdown.

3. Precision Interference Fit:​ The retaining cap and swirl ring interfaces are manufactured to micron-level tolerances. This ensures that the consumable stack remains perfectly aligned under vibration and thermal cycling, preventing gas leaks and arc instability during high-speed mechanized cutting.

Frequently Asked Questions (FAQ)

• Q: What is the difference between the 220529 and 220488 swirl rings?

  • A:​ Both serve the same fundamental function, but they are dimensionally specific to their respective amperage classes. The 220529 is typically used for lower amperage (50A-130A) applications, while the 220488 (or 220834 for Oxygen) is designed to handle the increased gas volumes and thermal loads of the 200A setting. Using the incorrect swirl ring can lead to turbulent gas flow and premature failure.

• Q: How does the Silver Cutting™ finish affect cut quality?

  • A:​ Plasma arcs are sensitive to surface imperfections. Even microscopic irregularities can cause the arc to "stutter" or stick to the side of the nozzle. The Silver Cutting™ finish creates a uniform gas flow path, resulting in a more stable arc column. This translates directly to cleaner cut edges, reduced top spatter, and improved verticality in the cut face.

• Q: Can I mix HALANSM® electrodes with OEM nozzles?

  • A:​ Yes, HALANSM® consumables are designed as direct drop-in replacements. However, for optimal performance, it is recommended to use a fully matched set (Electrode + Nozzle + Swirl Ring) from HALANSM® to ensure uniform tolerances and maximum synergistic performance.
