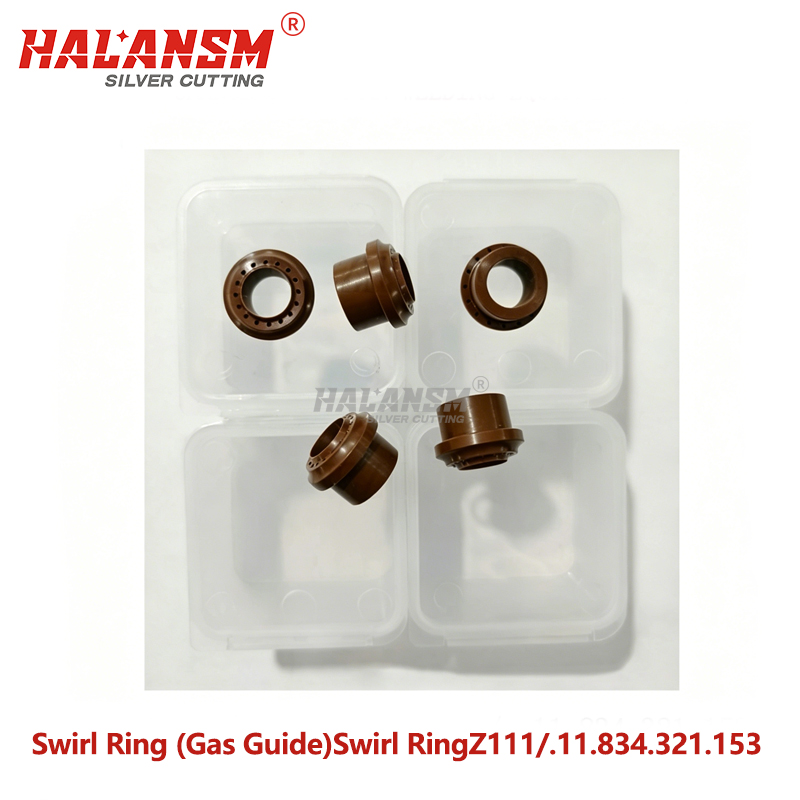

HALANSM® Gas Guide Z111 Swirl Ring .11.834.321.153 for Kjellberg Plasma Cutting Torch Consumables Replacement
HALANSM® HLN-Z111 is an aftermarket plasma swirl ring (gas guide) made of copper alloy, built for Kjellberg HiFocus 160i and PerCut 160 / 170 torches to deliver stable vortex gas flow and clean cuts
Need a gas guide for Kjellberg HiFocus 160i / PerCut 160 / 170 at up to 130A? HALANSM® HLN-Z111 replaces Z111 / .11.834.321.153 as an aftermarket swirl ring that restores proper gas rotation and protects the torch front end.
Product Overview
HALANSM® HLN-Z111 sits between the electrode and nozzle inside the Kjellberg torch head. Its annular body and internal swirl channels spin the plasma gas into a vortex, narrowing and stabilizing the arc column. A stable vortex means a tighter, more focused arc, narrower kerf, less dross and longer electrode / nozzle life.
Key Advantages
Restored Vortex Flow
Machined internal swirl channels re-establish the gas rotation that focuses the plasma arc and improves edge squareness.
Copper Alloy Body
Copper construction dissipates heat from the torch front end and resists thermal deformation during sustained cutting.
Precision Concentric Bore
Consistent bore and wall thickness keep the nozzle centered, reducing arc wander and cut variation.
Aftermarket Batch Inspection
Each lot is checked for bore, channel pattern and seating tolerance. Store dry and free of dust and oil.
Confirm exact specs with us (select per your torch model)
Gas
O2, Air, N2, ArH2 (select per process)
Mounting
Annular ring, torch-head internal seat; hand-assemble only
Compatible Equipment / Application
HALANSM® HLN-Z111 is a compatible aftermarket replacement for Kjellberg Z111 / .11.834.321.153, listed for HiFocus 160i, PerCut 160 and PerCut 170 plasma torches. It is not original Kjellberg equipment and is not factory authorized. Provide your torch model and original part number for fitment check before ordering.
Selection Notes
Use Z111 (up to 130A range) in HiFocus 160i / PerCut 160 / 170 heads only. For HiFocus 280i / 360i / 440i (280‑400A), use the G121 gas guide from the same catalog — the seat profile and current rating differ and the parts are not interchangeable. Using the wrong swirl ring breaks the vortex, causing arc wander, wider kerf and faster electrode / nozzle wear.
Model
Amperage
Application
HLN-G101
Up to 130A
HiFocus 130i / 160i / 280i gas guide (same catalog)
HLN-Z111
Up to 130A
HiFocus 160i; PerCut 160 / 170 swirl ring
HLN-G121
280–400A
HiFocus 280i / 360i / 440i gas guide (not interchangeable with Z111)
Installation and Handling
· Power off the plasma source and release gas pressure from the lines.
· Remove the shield cap, then the nozzle and old swirl ring / gas guide.
· Clean the torch seat and gas passages; inspect O-rings and sealing surfaces.
· Seat the electrode, install the new swirl ring with channels aligned to the torch reference, then the nozzle.
· Fit the shield cap and hand-tighten only — do not over-torque copper or brass threads.
· Run a low-current test cut to verify arc stability and gas swirl before production.
Frequently Asked Questions
Which Kjellberg torches fit HALANSM® HLN-Z111?
HLN-Z111 fits HiFocus 160i and PerCut 160 / 170 torches as a compatible aftermarket replacement for Z111 / .11.834.321.153. Send your torch model and OEM part number for final fitment check.
What material is the HALANSM® Z111 swirl ring made of?
HLN-Z111 uses copper alloy for heat resistance and stable bore geometry. It is an aftermarket part, not original Kjellberg equipment.
Does Z111 support O2 and air plasma?
Yes. Z111 supports O2, air, N2 and ArH2 when paired with the matching electrode and nozzle. O2 and air nozzle bores are not interchangeable.
Why does cut quality drop after replacing the swirl ring?
A worn or wrong swirl ring breaks gas vortex. Common causes are clogged channels, dirty seat, misaligned ring or over-tightened cap. Clean the seat, confirm Z111 orientation and test at low current.
What specs should I confirm before ordering?
Confirm outer diameter, height and swirl-channel count for your HiFocus / PerCut variant. Z111 must match the torch-head seat and current rating of your setup.
How should I store spare Z111 swirl rings?
Keep in original packaging, dry and dust-free. Avoid oil, moisture and stacked metal parts that can deform the bore or seating surface.
