HALANSM® HLN-G121 Gas Guide (Swirl Ring) for Kjellberg HiFocus280i/360i/440i – 280-400A

OEM Equivalent: G121 / .11.848.421.145  |  PerCut450M "G" Type  |  Vespel / Ceramic

★ SUMMARY

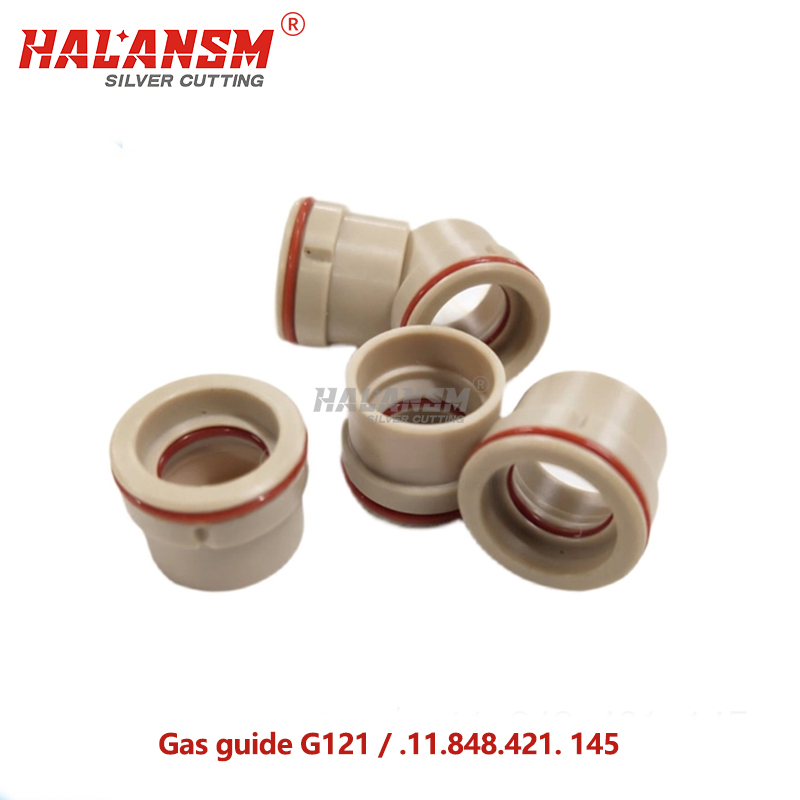

HALANSM® HLN-G121 is a direct replacement gas guide / swirl ring (OEM cross-reference G121 / .11.848.421.145) engineered for Kjellberg HiFocus280i, HiFocus360i, HiFocus440i, and HiFocus600i plasma systems using PerCut450M "G" type torches at 280-400A. Manufactured from heat-resistant Vespel® polymer or high-purity ceramic, it controls and swirls the plasma gas around the electrode tip to stabilize the arc, reduce dross formation, and maximize cut quality. G121 is the designated swirl ring in Kjellberg’s PerCut450M high-amperage stack, inserted into the nozzle body between the cooling tube and the electrode.

1. What Is HALANSM® HLN-G121?

HALANSM® HLN-G121 is a direct replacement gas guide with OEM part number G121 (.11.848.421.145), compatible with Kjellberg HiFocus280i, HiFocus360i, HiFocus440i, and HiFocus600i plasma cutting systems operating at 280-400A with PerCut450M "G" type torches. The component is manufactured from Vespel® polyimide polymer or high-purity ceramic—both engineered to withstand extreme plasma temperatures while maintaining precise gas channel geometry. It is rated for 280-400A O₂, N₂, Air, Ar/H₂, and F5 plasma service, controlling and imparting a swirling motion to the gas flow that stabilizes the plasma arc and improves energy density.

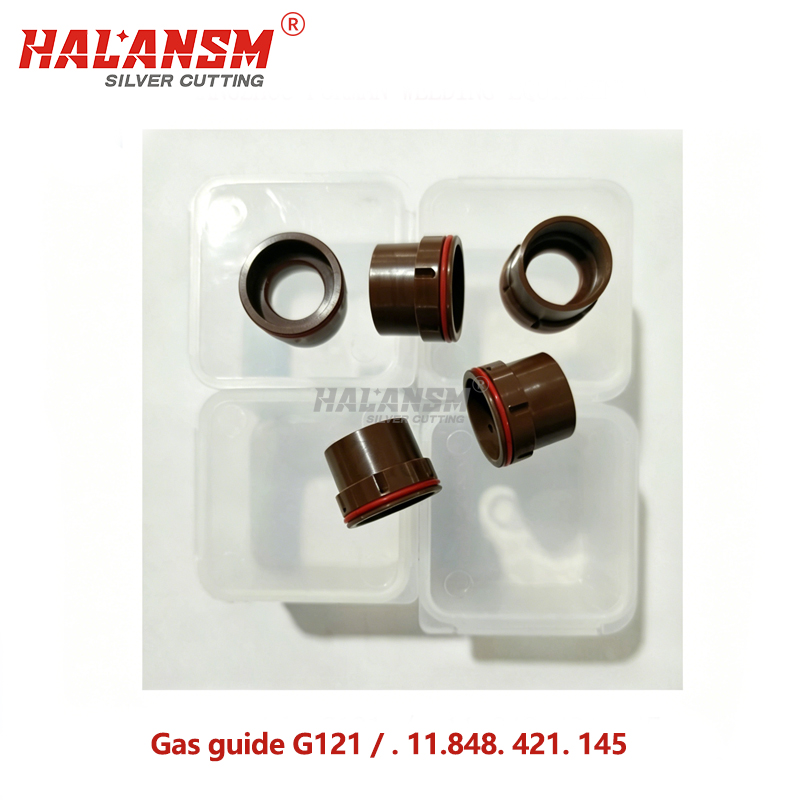

The HLN-G121 sits at the heart of the consumable stack—inserted into the rear of the nozzle body, it directs swirling gas around the G032Y or G034Y cathode tip. Its precision-machined gas channels are calibrated to Kjellberg’s flow dynamics, ensuring consistent arc root positioning and ISO 9013-compliant cut quality at sustained 280-400A production loads. A clogged or damaged G121 swirl ring is the #1 cause of premature electrode failure—making this small component critically important to overall stack performance.

2. Technical Specifications

⚠ IMPORTANT: G121 is rated 280-400A. For 20-200A systems (HiFocus130i/160i/280i), use HLN-G101 (.11.848.221.145) or HLN-G102 (.11.848.221.146) gas guides instead. Installing G121 in a low-amperage stack causes gas flow mismatch and accelerated wear.

3. OEM Cross-Reference Table

Sources: Hypertherm Centricut official Kjellberg PerCut450M consumable list; Astratec EU parts catalog; Easyweld Made-in-China product specifications.

4. Complete Consumable Stack (HiFocus440i / PerCut450M, 280-400A)

Assembly sequence per Kjellberg service manual:

Nozzle selection by amperage (O₂):

INSTALLATION: G121 inserts into the REAR of the nozzle body before the nozzle is threaded onto the torch. The gas guide must seat fully against the cooling tube shoulder—partial insertion blocks swirl gas channels and causes immediate arc instability. Hand-tight only; never use tools on polymer/ceramic components.

5. Application & Use Cases

✔ IDEAL FOR

Sustained 280-400A O₂ cutting on HiFocus360i/440i — G121’s swirl channels generate the vortex flow that constricts and stabilizes the plasma arc at high amperage, delivering ISO 9013 Class 1-2 cut quality on 25-80mm mild steel.

HiFocus440i 360-400A production cutting — 50-80mm mild steel at 300-500mm/min; G121 + G034Y cathode + G2330Y/G2331Y nozzle stack maintains 100% duty cycle without arc drift or dross buildup.

Stainless steel & aluminum cutting with Ar/H₂ or F5 — G121 supports all Kjellberg-certified plasma chemistries; ideal for shipbuilding, heavy machinery, and energy sector fabrication at 12-50mm thickness.

✘ NOT RECOMMENDED FOR

HiFocus130i/160i at 20-200A — G121 is rated 280-400A. For these systems, use HLN-G101 (20-200A) or HLN-G102 (60-200A) gas guides for correct gas flow geometry.

PerCut160 / PerCut370.1 torches — these require the S-type stack with G4015/G4020 swirl gas caps and different gas guide geometry; G121 is incompatible with legacy torch platforms.

6. Why Choose HALANSM® HLN-G121

7. FAQ — Frequently Asked Questions

Is HALANSM® HLN-G121 compatible with Kjellberg HiFocus440i?

Yes. HALANSM® HLN-G121 is a direct replacement for Kjellberg G121 (.11.848.421.145), fully compatible with HiFocus280i, HiFocus360i, HiFocus440i, and HiFocus600i plasma systems using the PerCut450M "G" type torch at 280-400A. It inserts into the rear of the nozzle body: G931Y cooling tube → G032Y/G034Y cathode → G121 gas guide (inserted into nozzle) → G2330Y nozzle → G3219 nozzle cap → G4350 swirl gas cap → G521 protective cap.

What material is the G121 swirl ring made from?

Vespel® polyimide polymer or high-purity ceramic — both types available. HALANSM® offers G121 in two material variants: (1) Vespel® polyimide — DuPont’s high-performance polymer rated for continuous 280-400°C service, excellent for O₂/N₂/Air plasma; (2) High-purity ceramic — for extreme-duty Ar/H₂ HiFinox cutting on HiFocus440i/600i. Both materials maintain precise gas channel geometry under sustained high-amperage loads.

Is G121 the same as G101?

No. G121 (.11.848.421.145) is the high-amperage gas guide rated 280-400A for PerCut450M "G" type torches. G101 (.11.848.221.145) is the low-amperage gas guide rated 20-200A for the same PerCut450M platform. They have different swirl channel geometries optimized for their respective amperage ranges. Installing G101 in a 280-400A stack causes gas flow mismatch and rapid cathode failure; installing G121 in a 20-200A system wastes gas and reduces cut quality.

What happens if the G121 swirl ring gets clogged or damaged?

Premature cathode failure and degraded cut quality. Clogged swirl channels are the #1 cause of shortened electrode (G032Y/G034Y) service life. Symptoms: rapid hafnium emitter cratering, double arcing, inconsistent arc initiation, increased dross, and wider kerf. If you notice any of these, remove the G121 from the nozzle, clean with compressed air and a soft brush, and inspect for cracks or channel blockage. Replace if cleaning does not restore performance.

Can I use HLN-G121 for Ar/H₂ stainless steel cutting?

Yes, with the ceramic variant. HLN-G121 in Vespel® is optimized for O₂/N₂/Air/F5 plasma. For Ar/H₂ HiFinox cutting on HiFocus360i/440i/600i, we recommend the ceramic variant of G121 (or HLN-G125 .11.848.421.149 for dedicated Ar/H₂ service), which resists hydrogen embrittlement and maintains dimensional stability in Ar/H₂ chemistry.

When should I replace the G121 gas guide?

Replace when swirl channels show visible clogging, cracking, or dimensional change. Typical lifespan: 300-600 arc starts under standard 280-400A O₂ cutting conditions. Replace immediately if: (1) Swirl channels clogged with spatter residue that cannot be cleaned with compressed air; (2) Cracks or deformation on the Vespel®/ceramic body; (3) Loose fit in nozzle body (indicates thermal degradation); (4) Cut quality suddenly degrades despite new electrode and nozzle. At ~$5-15/unit vs $50-150 cathode replacement cost, G121 is the highest-ROI component in the PerCut450M stack.
