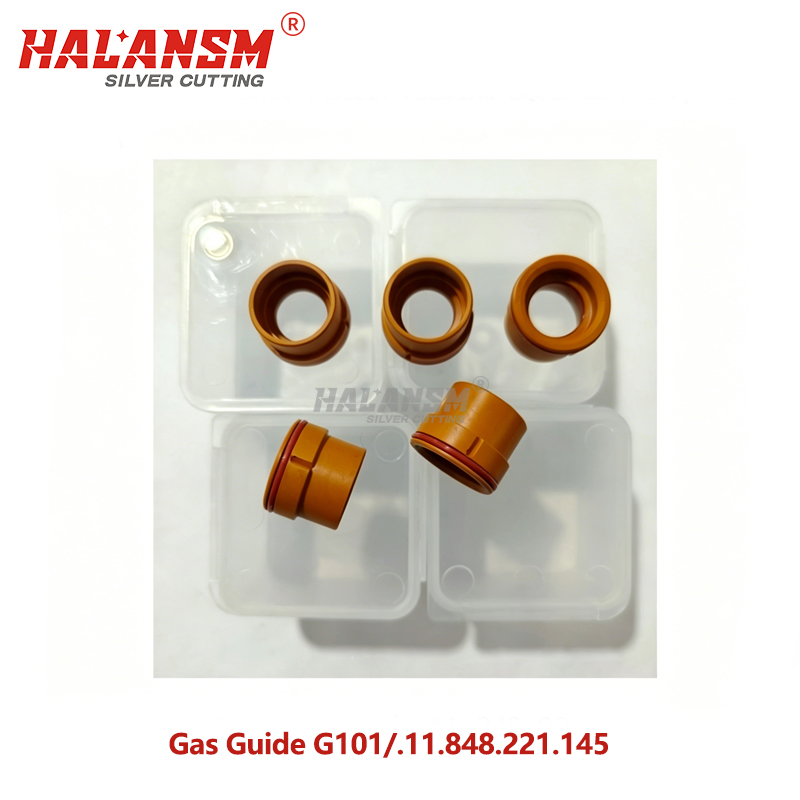

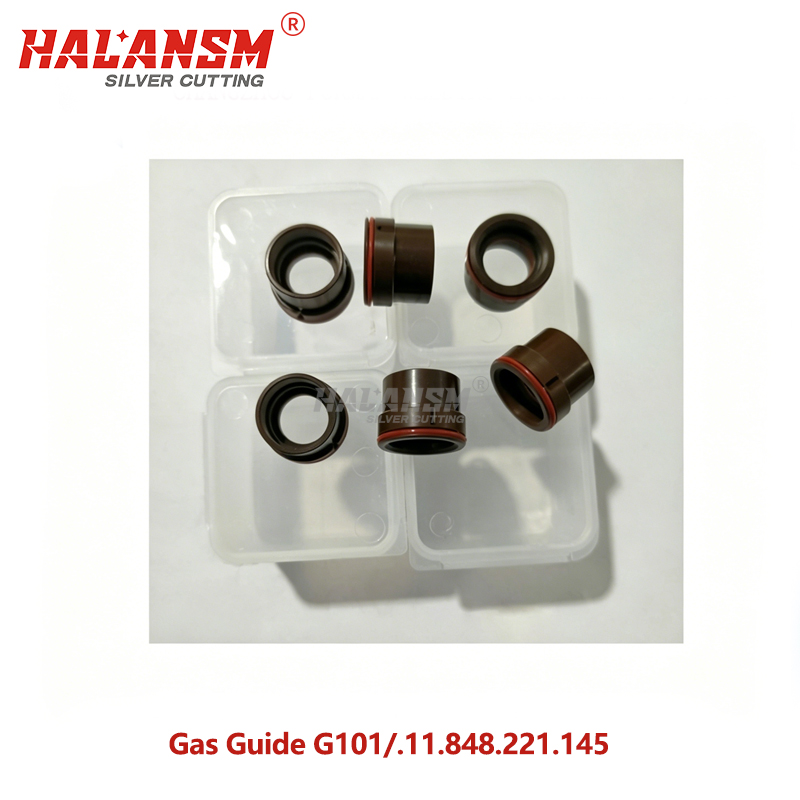

HALANSM® HLN-G101 Swirl Ring (Gas Guide) for Kjellberg HiFocus280i/360i/440i – 130A

OEM G101 / .11.848.221.145 Equivalent | Vespel® Polyimide | PerCut450M "G" Type

1. What Is HALANSM® HLN-G101?

HALANSM® HLN-G101 is a direct replacement swirl ring / gas guide with OEM part number G101 (.11.848.221.145), compatible with Kjellberg HiFocus130i, HiFocus160i, HiFocus280i, HiFocus360i, and HiFocus440i plasma cutting systems operating at up to 130A with PerCut450M "G" type torches. The component is constructed from Vespel® polyimide — a high-performance plastic engineered for extreme thermal and electrical insulation, manufactured to Kjellberg’s dimensional tolerances for the PerCut450M platform. It is rated for 130A O₂, N₂, Air, and F5 plasma service, functioning as the gas flow director that spins plasma gas into a vortex before it exits the nozzle.

The HLN-G101 inserts into the rear of the nozzle (G201X or G23XX series) and sits between the cathode (G002Y at 20-200A or G032Y at 280A) and the nozzle orifice. Its precision-machined gas channels impart rotational momentum to the plasma gas, creating a swirling flow that stabilizes the arc root, constricts the plasma jet, and prevents direct plasma exposure of the hafnium emitter. Without a properly functioning G101, arc stability degrades within hours and electrode life drops by 40-60%.

2. Technical Specifications

3. OEM Cross-Reference

4. Complete Consumable Stack (HiFocus280i / PerCut450M, 90-130A O₂)

Nozzle Selection by Amperage (O₂)

5. Application & Use Cases

6. Why Choose HALANSM® HLN-G101

7. FAQ

Is HALANSM® HLN-G101 compatible with Kjellberg HiFocus280i?

Yes. HALANSM® HLN-G101 is a direct replacement for Kjellberg G101 (.11.848.221.145), fully compatible with HiFocus130i, HiFocus160i, HiFocus280i, HiFocus360i, and HiFocus440i plasma systems using the PerCut450M "G" type torch. It installs as the gas guide inserted into the rear of the nozzle: G901Y cooling tube → G002Y cathode → G101 swirl ring (inserted in nozzle) → G2012Y nozzle → G3028 nozzle cap → G4030 swirl gas cap → G501 protection cap.

Is G101 the same as G121?

No. G101 (.11.848.221.145) is the standard swirl ring rated up to 130A for PerCut450M "G" type torches. G121 (.11.848.421.145) is the high-amperage swirl ring rated 280-400A for the same PerCut450M platform. While both share the same PN suffix, their internal gas channel geometries are optimized for different amperage ranges. Using G101 at 280A+ causes accelerated Vespel® degradation and arc instability. Match the swirl ring to your actual cutting amperage.

What does the G101 swirl ring actually do?

Three critical functions: (1) Spins plasma gas into a vortex — its precision-machined helical channels impart rotational momentum to O₂/N₂/Air/F5 plasma gas, creating a constricted, high-energy-density plasma jet; (2) Stabilizes the arc root — focused gas dynamics center the arc on the hafnium emitter, preventing wander and ensuring ISO 9013-compliant cut quality; (3) Insulates the electrode — Vespel® polyimide is a non-conductive, high-temperature plastic that prevents direct plasma exposure of the cathode tip, extending electrode life by 40-60%.

What gas should I use with HLN-G101?

Any Kjellberg-certified HiFocus gas. G101 supports O₂, N₂, Air, and F5 as plasma gases, with O₂, N₂, Air, and F5 as swirl gases. Required purity: O₂ ≥ 99.5%, N₂ ≥ 99.99%. At 90-130A O₂ cutting: O₂ plasma at 0.8-1.0 MPa, 1250-2000 L/h; swirl gas at 0.6 MPa, 1750 L/h. For Ar/H₂ HiFinox stainless cutting, do not use G101 — switch to the appropriate Ar/H₂ swirl ring for PerCut451M.

How do I know when to replace G101?

Replace when: (1) Swirl channels are partially blocked by spatter or debris (use compressed air or wire brush to clean; if blockage persists, replace); (2) Vespel® body shows heat cracking or discoloration (amber→dark brown indicates thermal degradation); (3) Arc becomes unstable — wandering arc root, inconsistent cut quality, increased dross; (4) Electrode life drops suddenly — if your G002Y cathode is failing 40-60% faster than usual, suspect a degraded G101. Typical lifespan: 300-600 arc starts under standard 90-130A O₂ conditions.

Can a worn G101 damage other consumables?

Yes, critically. A clogged or degraded G101 is the #1 cause of premature electrode failure. Without proper gas vortex generation, the plasma arc wanders off the hafnium emitter center, causing uneven cratering, double arcing, and rapid cathode destruction. A $5-15 G101 replacement protects your $50-150 G002Y/G032Y cathode and $30-80 G2012Y/G2330Y nozzle. Always inspect G101 during every consumable change — it takes 10 seconds and saves hundreds in prevented failures.
