HALANSM® HLN-V101 aftermarket V101 swirl ring .12.40860 for Kjellberg PA-50 PA-S75 PA-S76 PA-S77. Vespel gas guide for stable vortex, O2/air/N2/ArH2 plasma cuts.
HLN-V101 / .12.40860
HALANSM®
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Product Type
Gas Guide / Swirl Ring
Original Reference
V101 / .12.40860 (aftermarket, compatible)
Fits Machine
Kjellberg PA-50, PA-S75, PA-S76, PA-S77
Material
Vespel (polyimide)
Gas
O2, Air, N2, ArH2
Vent / Cooling
Central 2.0 mm bore for vortex flow
OD / Height / Thread
Confirm exact specs with us
Swirl Holes
Confirm exact specs with us
Amperage
Confirm exact specs with us
Seat / Mount
Cylindrical guide with seating groove; confirm exact specs with us
HALANSM®
SILVER CUTTING
HLN-Z4140 / .11.835.401.1571

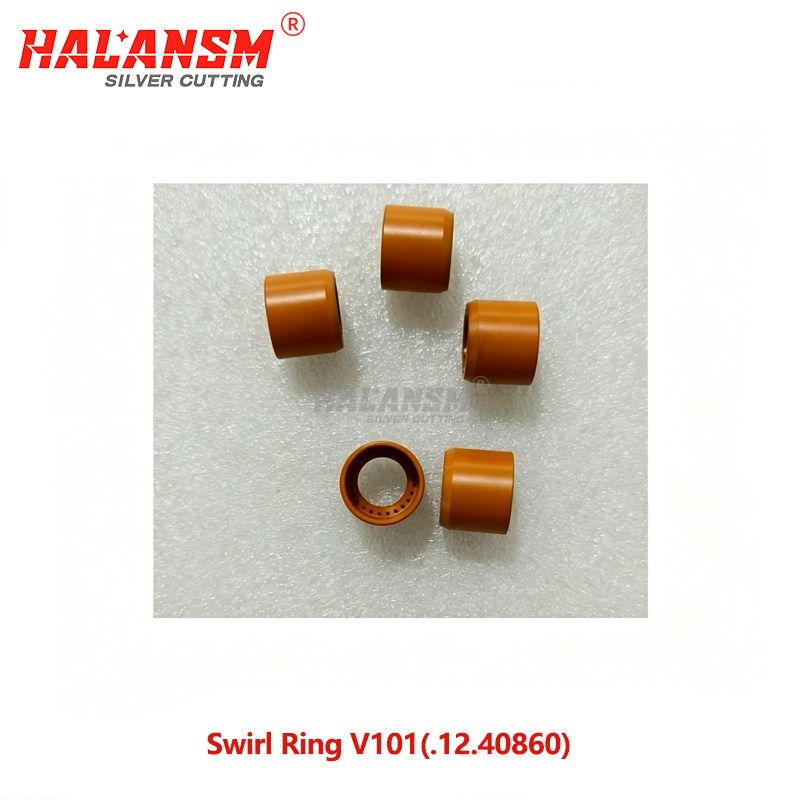

HALANSM® Gas Guide V101 Swirl Ring .12.40860 for Kjellberg Plasma Cutting Torch

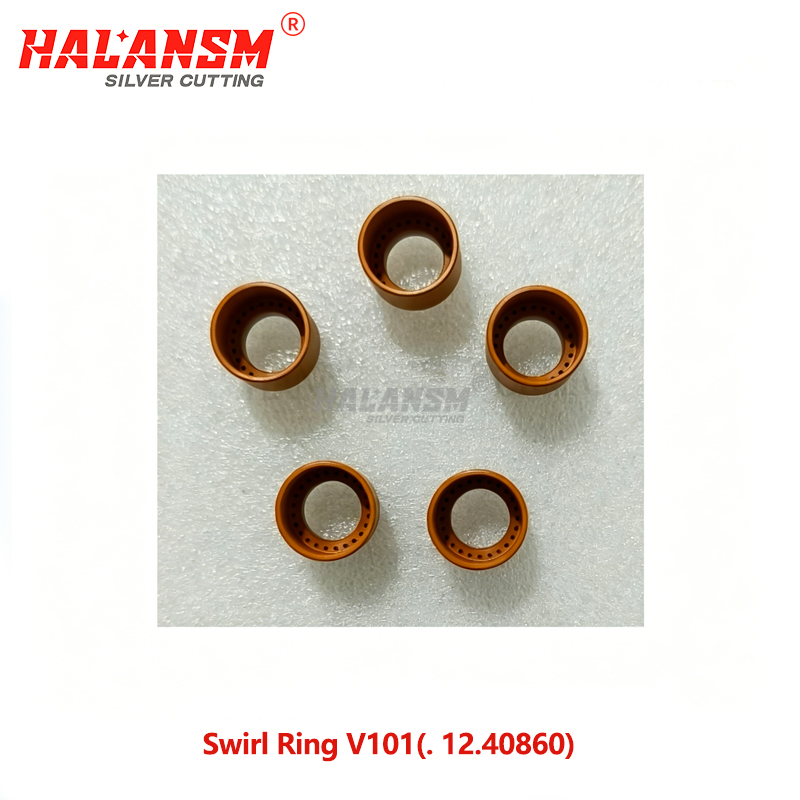

HALANSM® HLN-V101 is an aftermarket plasma swirl ring (gas guide) with Vespel material, built for Kjellberg PA-50, PA-S75, PA-S76 and PA-S77 torches to deliver stable vortex gas flow and clean cuts.
Need a V101 gas guide for Kjellberg PA-S75/76/77? HALANSM® HLN-V101 replaces V101 / .12.40860 as an aftermarket swirl ring that stabilizes the arc and supports O2, air, N2 and ArH2 processes.
Product Overview

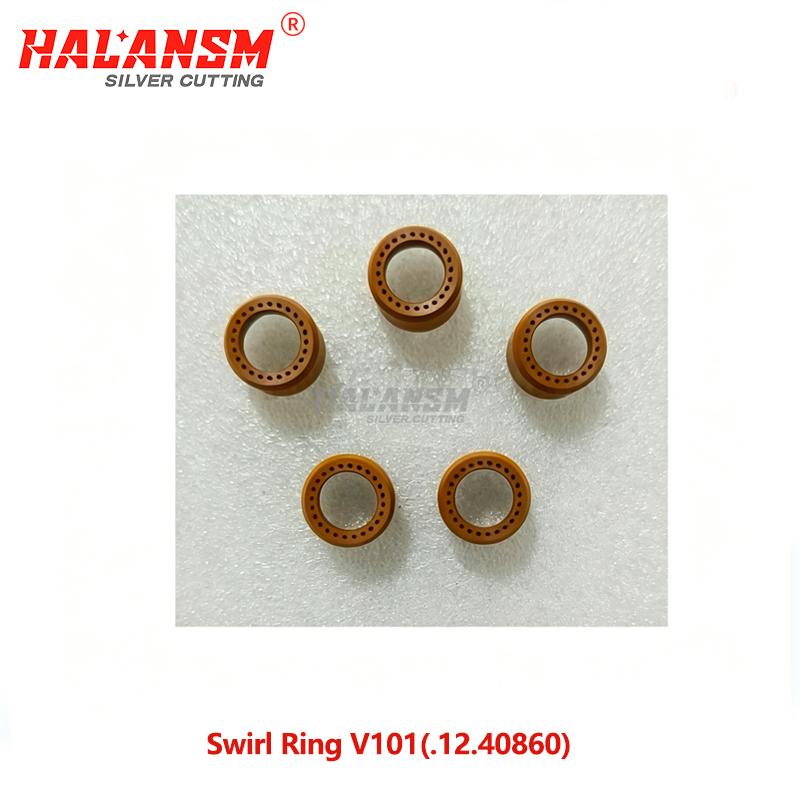

HLN-V101 sits between the electrode and nozzle in PA-series torches. Its circumferential swirl holes add rotation to the plasma gas, narrowing and stabilizing the arc column. Vespel construction resists high torch-head temperature and holds bore geometry through repeated cutting cycles.
Key Advantages
Stable Vortex Flow
Machined swirl holes create uniform gas rotation for a narrower kerf and less dross.
Vespel Heat Resistance
Polyimide body maintains dimensional stability under sustained plasma heat.
PA-Series Seating
Matched outer profile and groove for the PA-50 / PA-S75 / PA-S76 / PA-S77 gas-guide seat. Hand-assemble only.
Aftermarket Batch Inspection
Each lot is checked for bore, hole pattern and seating tolerance. Store dry and dust-free.
Specifications
Part Type
Gas Guide / Swirl Ring
OEM Reference
V101 / .12.40860 (aftermarket, compatible)
Material
Vespel (polyimide)
Outer Diameter
Confirm exact specs with us
Height
Confirm exact specs with us
Swirl Holes
Confirm exact specs with us
Fits Machine
Kjellberg PA-50, PA-S75, PA-S76, PA-S77
Amperage
Confirm exact specs with us
Gas
O2, Air, N2, ArH2
Seat / Mount
Cylindrical guide with seating groove; confirm exact specs with us
Compatible Equipment / Application
Compatible aftermarket replacement for Kjellberg PA-50, PA-S75, PA-S76 and PA-S77 plasma torches using the V101 / .12.40860 gas guide. Not original Kjellberg equipment. Provide your torch model and original part number for fitment check.
Selection Notes
Use HLN-V101 only in PA-50 / PA-S75 / PA-S76 / PA-S77 stacks. Do not move HiFocus / PerCut gas guides (G101 / G102 / G121) into PA torches or vice versa; the seat profile, hole pattern and current rating differ. The wrong swirl ring breaks the vortex and causes arc wander and fast electrode / nozzle wear.
Installation and Handling
· Power off the plasma system and release gas pressure.
· Remove the shield, nozzle and old swirl ring; inspect the O-rings.
· Clean the torch seat and gas passages; remove slag or adhesive.
· Seat HLN-V101 with the swirl holes oriented to the torch reference. No forced press-fit.
· Install the nozzle and shield; hand-tighten only.
· Run a low-current test cut to verify arc stability and gas swirl.
Frequently Asked Questions
Which Kjellberg torches fit HALANSM® HLN-V101?
It fits PA-50, PA-S75, PA-S76 and PA-S77 torches as an aftermarket V101 / .12.40860 replacement. Send your torch model and OEM number for final fitment check.
What material is the V101 swirl ring?
HLN-V101 uses Vespel polyimide for high heat resistance and stable bore geometry. It is an aftermarket part, not original Kjellberg equipment.
Does V101 support O2 and air plasma?
Yes. HLN-V101 supports O2, air, N2 and ArH2. Match the electrode and nozzle to the selected gas; O2 and air nozzle bores are not interchangeable.
Why does cut quality drop after replacing the swirl ring?
A worn or wrong swirl ring breaks gas vortex. Common causes are mixed PA / HiFocus guides, clogged holes, a dirty seat or an over-tightened cap. Clean the seat, confirm V101 and test at low current.
What dimensions should I confirm before ordering?
Confirm outer diameter, height, swirl-hole count and seat profile for your PA torch variant. HLN-V101 lists these as confirm-exact-specs until your torch model is verified.
How should I store spare V101 swirl rings?
Keep them in original packaging, dry and dust-free. Avoid oil, moisture and stacked metal that can deform the bore or seating groove.
Related Products
From the official HALANSM® Kjellberg consumables catalog:
Changzhou Halan Machinery Technology Co., Ltd. focuses on high-quality plasma cutting and welding consumables. We have wide range of Plasma consumable accessories those are made by high grade of material and made by latest method with technology.
