The Hypertherm MAX200 has long been the benchmark for heavy-duty air and oxygen plasma cutting. Whether operating the standard MAX200 torch or upgrading to the high-performance HyPro2000 retrofit system, the integrity of the consumable stack is paramount to achieving optimal cut quality, piercing speed, and overall cost-per-foot metrics.
HALANSM® delivers precision-engineered replacement parts that maintain strict adherence to OEM tolerances while introducing advanced surface treatments to enhance performance. This guide provides a technical overview of compatible consumable groups, application scenarios, and the advantages of the Silver Cutting™ finishing process.
The plasma cutting process subjects consumables to extreme thermal loads and ion bombardment. The materials used must therefore possess high thermal conductivity, resistance to thermal erosion, and arc attachment stability.

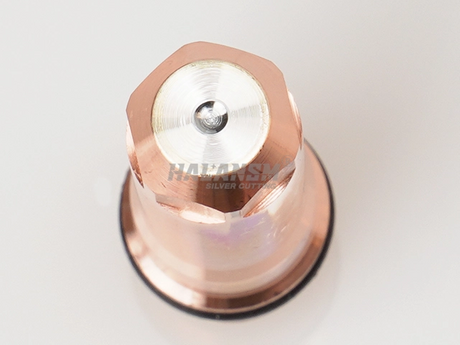

Electrode: Typically constructed with a high-purity copper body embedding a hafnium or silver-based insert. The insert serves as the cathode where the arc attaches. Its ability to resist vaporization under extreme heat directly correlates with the life of the electrode.
Nozzle: Precision-machined from oxygen-free copper, the nozzle features a precisely drilled orifice and external gas swirl pockets. Its role is to constrict the plasma gas flow into a coherent, high-velocity jet capable of piercing and severing metal.
Shield Cap: Positioned externally to the nozzle, the shield cap provides a protective barrier against spatter and establishes a secondary gas curtain (gas wash) that shields the cut edges from oxidation and ensures a clean cut surface.
Swirl Ring: Usually made from a high-strength insulating polymer or treated copper alloy, the swirl ring contains precisely molded gas channels that induce a vortex flow, centering the arc and cooling the nozzle.
Different cutting applications demand different consumable sets. Below is a matrix detailing the compatible HALANSM® equivalents for various amperage and gas combinations.
Amperage | Recommended Gas | Application Scenario | HALANSM® Equivalent Parts (OEM Cross-Ref) |
|---|---|---|---|
50A | Air / Oxygen | Light fabrication, HVAC ductwork, automotive repair. | Electrode (220528), Nozzle (220890), Shield (220532) |
130A | Air / Oxygen | General structural steel, shipbuilding, medium-thickness plate. | Electrode (220487), Nozzle (220892), Shield (220536) |
200A (HyPro2000) | Air / Oxygen / Nitrogen | Heavy machinery, thick-section processing, high-speed drag cutting. | Electrode (220937), Nozzle (420044), Shield (420045) |
For optimal results, it is critical to replace the consumables as a matched set. Below is a comprehensive table of the complete stack for the 200A HyPro2000 upgrade on the MAX200 platform.
Component | HALANSM® Description | OEM Reference Number | Primary Function |
|---|---|---|---|
Electrode | Silver Cutting™ 200A Air/Oxygen Electrode | 220937 | Generates the primary plasma arc with high-purity insert. |
Swirl Ring | Precision Molded Vortex Ring | 220488 | Creates the vortex gas flow necessary to cool the nozzle and center the arc. |
Nozzle | Fine-Finish Piercing Nozzle | 420044 | Focuses the plasma stream for piercing and cutting through thick plate. |
Shield Cap | Extended Life Outer Shield | 420045 | Shields the nozzle from spatter and provides final gas wash for clean edges. |
Retaining Cap | Heavy-Duty Retainer | 220936 | Secures the nozzle and swirl ring assembly within the torch head. |
Water Tube | High-Flow Cooling Tube | 220521 | Delivers high-pressure internal water cooling to prevent torch meltdown. |
While the primary focus is on technical compatibility, the engineering behind HALANSM® consumables introduces subtle yet impactful improvements:
Surface Finish Optimization: The proprietary Silver Cutting™ surface treatment significantly reduces microscopic imperfections on the internal orifices of nozzles and swirl rings. In plasma physics, a smoother surface promotes a more stable, laminar gas flow. This reduces the likelihood of arc wandering, minimizes dross adhesion, and extends the service life of the nozzle.
Material Purity: Utilizing high-conductivity copper alloys and ultra-pure hafnium inserts ensures maximum energy transfer efficiency from the power supply to the workpiece.
Dimensional Accuracy: Computer-controlled machining processes guarantee that each component meets the micron-level tolerances required for consistent arc ignition and cut quality across the entire lifespan of the consumable.
Q: What is the difference between standard MAX200 consumables and HyPro2000 upgrade parts?
A: The HyPro2000 upgrade torch is designed to significantly increase cutting speeds and pierce thicker materials compared to the standard MAX200. Consequently, the 200A HyPro2000 consumables (such as the 420044 nozzle and 220937 electrode) are engineered to handle higher thermal loads and have different physical dimensions than the standard 130A or 50A parts.
Q: Can I mix HALANSM® electrodes with OEM nozzles and swirl rings?
A: While the torch will function, for optimal performance and to maximize consumable life, it is highly recommended to use a fully matched set. The interaction between the electrode and nozzle is highly sensitive; mismatched tolerances can lead to arc instability and premature failure of both components.
Q: How does the Silver Cutting™ finish affect the cut quality?
A: Imperfections on the surface of the swirl ring or inside the nozzle can disrupt the gas flow, causing the plasma arc to become erratic. The ultra-smooth Silver Cutting™ finish ensures a consistent vortex and precise gas constriction. This translates directly to a more stable arc, less spatter, cleaner cut edges, and a noticeable reduction in kerf width variability.
