Shield Retaining Cap 420200 For Hypertherm XPR300: Complete Consumable Stack Engineering With HALANSM® Precision Replication

The 420200 Shield Retaining Cap: Universal Terminator Of The XPR300 Consumable Stack

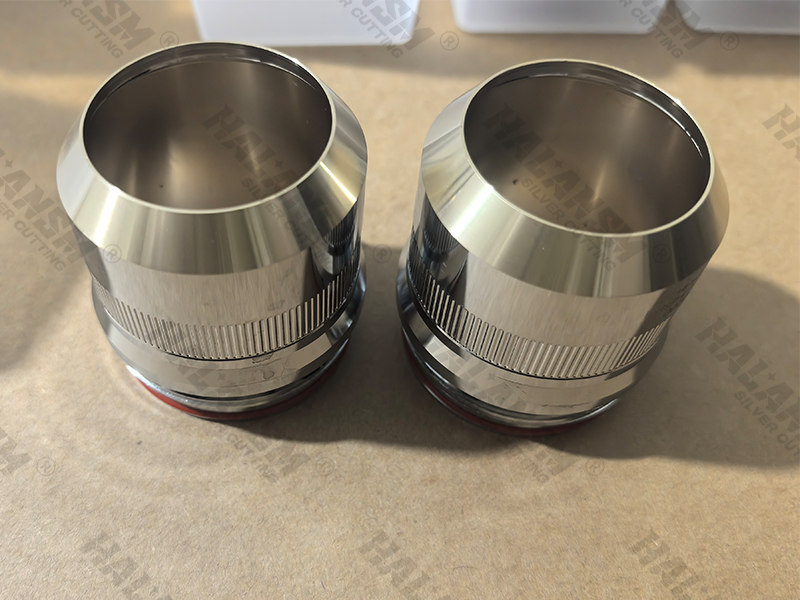

The HALANSM® 420200 Shield Retaining Cap​ is the outermost threaded component of the Hypertherm XPR300 plasma torch consumable stack . Per Hypertherm's official consumables specification, 420200 appears in every single documented process configuration​ — from 30A O₂/O₂ mirror cutting to 300A O₂/Air heavy piercing and 300A N₂/H₂O Vented Water Injection (VWI) — confirming its role as the universal shield cap for the entire 30–300A operating envelope . Its core physical function is threefold: (1) axially compress the shield (420228/420237/etc.) against the nozzle retaining cap (420365) to maintain precise concentricity of the entire plasma arc column; (2) seal the pressurized coolant circuit that flows through the water tube (420368) and around the electrode; (3) provide the reference datum from which the nozzle, swirl ring, and electrode align to form a coaxial laminar flow path.

Critical system context: The XPR300 operates at 300A and 66.5kW output power at 100% duty cycle (40°C)​ . At this thermal regime, the 420200 must maintain clamping force against continuous radiant heat from the shield face, coolant pressure surges from the 420368 water tube, and electromagnetic forces acting on the arc column. Any loss of concentricity introduced by a worn or dimensionally incorrect 420200 cascades through the entire stack — destabilizing the swirl ring vortex, shifting the nozzle orifice off-axis from the hafnium emitter, and triggering double arcing.

Why Does Hafnium Emitter Physics Govern Arc Attachment Through 300A?

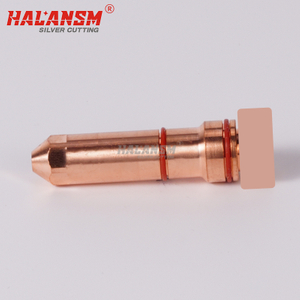

The electrode (420222/420231/420240/420249/420258/420276 for mild steel; 420303/420294/420356 for non-ferrous) embeds a hafnium insert in a copper-chromium-zirconium (CuCrZr) holder . Hafnium's low work function (~3.5 eV) and extreme melting point (2,233°C / 4,051°F) make it the ideal arc root attachment point . When the pilot arc initiates, the hafnium emits electrons via thermionic emission, establishing a stable, low-resistance path for the main arc.

The 420200's indirect role: The shield cap does not touch the electrode, but it establishes the axial datum​ from which the electrode's position is determined. The 420368 water tube pushes the electrode forward; the 420365 nozzle retaining cap positions the nozzle; the 420200 shield cap compresses the shield against 420365. If 420200's thread depth or face flatness is dimensionally incorrect by even 0.05mm, the cumulative stack-up error shifts the nozzle orifice off-axis from the hafnium emitter by a proportional amount. At 30A this may be tolerable; at 300A it is fatal — the misaligned arc immediately double-arcing to the nozzle bore wall.

How Does The Swirl Ring Vortex Center The Arc?

The swirl ring (420407/420233/420242/420260/420406 for mild steel; 420314/420323/420358 for non-ferrous) sits immediately upstream of the nozzle . Its internal vanes impart a helical rotation to the incoming plasma gas, creating a cyclonic vortex. This vortex:

1. Centripetally pins the arc root​ to the center of the hafnium emitter, preventing wander

2. Establishes a laminar core​ — a low-turbulence central gas column through which the arc passes

3. Electrically insulates​ the negatively charged electrode from the positively charged nozzle via precision-machined ceramic or polymer construction

The 420200 indirectly influences vortex quality: by maintaining shield/nozzle concentricity, it ensures the swirl ring's exit aperture aligns perfectly with the nozzle's converging entrance. A misaligned 420200 shifts the shield, which shifts the nozzle relative to the swirl ring — breaking vortex symmetry and allowing the arc to "wobble."

Swirl Ring Coupling Divergence​ — The XPR300 uses two families of swirl rings with fundamentally different vane geometries:

Source: Hypertherm XPR300 Consumables Specification

The vane angle and gas metering hole geometry​ differ between O₂-process swirl rings (420407/420233/420242/420260/420406) and non-ferrous swirl rings (420314/420323/420358). O₂ requires a specific vane profile to manage the highly reactive gas chemistry; nitrogen and H₂O mixtures require different vortex characteristics. This is why the 420200 — while mechanically universal — clamps shields and nozzles that are themselves process-specific: the shield's gas plenum geometry is tuned to the swirl ring's output vortex.

How Does Nozzle Bore Diameter Constrict The Arc And Build A Laminar Core?

The nozzle (process and amperage specific) provides the final geometrical constraint. Its converging-diverging bore:

• Accelerates swirl-organized gas to supersonic velocity at the orifice exit

• Mechanically pins the arc column to a precise diameter at the exit plane

• Establishes a laminar flow core — a low-turbulence central gas column that thermally insulates the arc from the nozzle wall

At 300A (e.g., 420279 nozzle for mild steel O₂/Air, or 420359 for non-ferrous N₂/N₂), the bore diameter is maximized to accommodate the enlarged arc column . The 420365 nozzle retaining cap clamps the nozzle against the swirl ring; the 420200 shield cap clamps the shield against 420365. This cascaded clamping sequence ensures the nozzle's converging entrance is perfectly aligned with the swirl ring's exit — a prerequisite for laminar core formation.

Double Arcing Mechanics At 300A

Double arcing occurs when the plasma arc — instead of passing cleanly through the nozzle orifice — attaches simultaneously to the nozzle tip and the water tube (420368) or electrode body. At 300A, the electromagnetic forces trying to destabilize the arc are at their maximum. The failure sequence:

1. A worn 420200 allows the shield to shift by 0.02–0.05mm

2. This shifts the nozzle relative to the swirl ring by the same amount

3. The vortex symmetry breaks; the arc root wanders off the hafnium center

4. The arc strikes the nozzle bore wall → localized copper vaporization

5. Molten copper bridges to the water tube → full double arc

6. Catastrophic torch damage within milliseconds

This cascade is why Hypertherm's instruction manual explicitly mandates sequential disassembly: "Turn the shield cap counter-clockwise to release and remove the shield. Turn the nozzle retaining cap counter-clockwise to release and remove the nozzle and swirl ring" . The 420200 must be fully released before any internal component is disturbed.

Complete 7-Piece Consumable Stack: OEM Cross-Reference Matrix

Per Hypertherm's official XPR300 consumables specification , here is the authoritative cross-reference for representative processes across the full 30–300A range:

⚠️ Universal constraints across ALL XPR300 stacks:

• 420200 is mechanically universal​ — it fits every documented XPR300 process from 30A to 300A, O₂ to H₂-Ar-N₂/N₂. However, it must ALWAYS be paired with the correct shield for the process: 420228/420237/420246/420255/420513/420273/420491 (mild steel O₂) OR 420291/420309/420300/420318/420327/420362/420469/420472/420475 (non-ferrous)

• 420365 nozzle retaining cap is universal​ across all 30–300A processes

• 420368 water tube is universal​ across all processes — this is the standard XPR water tube

• Swirl ring is process-specific​ — O₂ processes use 420407/420233/420242/420260; non-ferrous processes use 420314/420323/420358. These are NOT interchangeable

• Bevel/Robotic lead sets (428831–428836) include an extended 1.2 m (48″) strain relief​ — when servicing XPR torches on bevel/robotic applications, the lead assembly differs from standard; the consumable stack itself (including 420200) remains identical, but the torch lead length constraint applies

• 6 m (20′) lead compatibility​ — the 6 m lead is compatible only with console gas assemblies that are 7.5 m (24.6′) or less

Sister-Part Divergence: Why Shield Geometry Dictates Process Compatibility

Source: Hypertherm XPR300 Consumables Specification

The critical engineering insight: The 420200 shield cap is dimensionally identical across all these configurations — it is the shield (second position) that diverges. The shield's internal gas plenum geometry is tuned to:

1. The swirl ring's vortex output (O₂ vs. non-ferrous vane profiles differ)

2. The nozzle's exit orifice (bore diameter scales with amperage)

3. The specific process requirements (VWI shields 420300/420469/420472/420475 have vented faces for water injection; mirror-cut shields 420228 have optimized face geometry for reflective cutting)

When 420200 clamps shield A against nozzle retaining cap 420365, it must transmit sufficient axial force to keep shield A's gas plenum perfectly aligned with the nozzle's exit. If 420200's face flatness is compromised, the shield tilts microscopically — and at 300A, this tilt triggers immediate double arcing.

Application Scenarios: Matching Stack To Fabrication Demand

Source: Hypertherm XPR300 Consumables Specification and XPR300 system brochure

HALANSM® 420200 Shield Retaining Cap: Verifiable Engineering Advantages

HALANSM® manufactures the 420200 Shield Retaining Cap to Hypertherm's published specifications. The engineering facts:

1. Thread Pitch And Depth Replication To Micron Tolerance

The 420200's threaded interface to the XPR torch body is machined to Hypertherm's specification to within micron tolerance. At 300A, any thread pitch deviation of 0.01–0.02mm alters the axial stack-up position of the shield by a proportional amount, shifting the nozzle orifice off-axis from the hafnium emitter. HALANSM®'s CNC threading process holds the pitch diameter, thread depth, and face perpendicularity to OEM dimensions, ensuring the shield seats with identical axial preload as genuine Hypertherm parts.

2. Silver Cutting™ Mirror-Finish Sealing Face

The internal face of the HALANSM® 420200 that contacts the shield receives the proprietary Silver Cutting™​ mirror polish. This eliminates micro-scratches and tooling marks that would otherwise create microscopic gas leakage paths between the cap and shield. A gas leak at this interface — even at 0.001 L/min — disrupts the shield's gas plenum pressure, degrading the vortex symmetry established by the swirl ring and precipitating double arcing. The mirror finish ensures a leak-tight seal across thousands of thermal cycles.

3. O-Ring Groove Geometry Verification

The 420200 features a precision-machined O-ring groove (using Hypertherm's specified silicone lubricant, part 027055 ). HALANSM® machines this groove to exact dimensions — width, depth, and fillet radius — to guarantee the O-ring seats without twisting or extruding under coolant pressure (the 420368 water tube operates under continuous coolant pressure). Groove geometry validation via go/no-go gauging ensures leak-proof performance across the full 30–300A range.

4. Material Microstructure Control For Thermal Shock Resistance

At 300A operation (66.5kW, 100% duty cycle ), the 420200's face is subjected to continuous radiant heat from the shield (420491 at 300A O₂/Air). HALANSM® controls the grain structure of the cap's chrome-zirconium copper alloy through precision heat treatment, ensuring dimensional stability under the thermal gradient. This microstructural discipline prevents the "face warping" deformation that plagues inferior caps and maintains shield concentricity throughout the consumable service life.

5. Knurled Grip Geometry Replication

The 420200 features an external knurled grip for hand-tightening (Hypertherm's instruction manual mandates manual removal: "Turn the shield cap counter-clockwise" ). HALANSM® replicates the knurl angle, pitch, and depth to OEM specification, ensuring the cap can be tightened to the correct torque by hand without slip or galling. Over-tightening is prevented by the precision face-stop geometry — the cap bottoms out at exactly the correct axial position.

Wear Diagnostics: 420200 And Full Stack

The HALANSM® advantage: By holding thread geometry, face flatness, and Silver Cutting™ finish to OEM specification, operators maximize consumable service life and minimize cost-per-cut across the entire 30–300A range.

Mandatory Installation Protocol For The XPR300 Stack

Per Hypertherm's XPR300 instruction manual , the non-negotiable sequence:

1. Remove power from the cutting system​ — See Lockout/Tagout procedure

2. Loosen the torch coupler nut​ to release the torch from the torch receptacle. The torch and consumables can be hot — wear gloves

3. Place the torch on a clean, dry, oil-free surface​

4. Turn the shield cap (420200) counter-clockwise​ to release and remove the shield

5. Turn the nozzle retaining cap (420365) counter-clockwise​ to release and remove the nozzle and swirl ring

6. Remove the electrode and water tube (420368)​ — slide the water tube back to release the electrode

7. Inspect and clean​ — verify swirl ring metering holes are clear, O-rings are intact, electrode hafnium pit depth is within limits (<1.0mm), and 420200's sealing face is unmarred

8. Install the water tube (420368)​ — ensure it is fully seated in the torch body

9. Install the electrode​ — seat fully onto the water tube

10. Install the swirl ring​ — add a tiny amount of O-ring lubricant (027055) to the outside O-rings

11. Install the nozzle​ — mate it to the swirl ring

12. Thread on the nozzle retaining cap (420365)​ — hand-tighten only

13. Install the shield (process-specific)​ — mate it to the nozzle

14. Thread on the shield retaining cap (420200)​ — hand-tighten ONLY; the precision face-stop prevents over-tightening

⚠️ Five critical incompatibilities to never violate:

• ❌ Never install 420200 on non-XPR torches​ — The 420200 thread geometry is specific to the XPR300 torch body. It is NOT compatible with Powermax105, Powermax125, or MAXPRO200 torches. Attempting to force-fit will strip threads and cause coolant leakage and electrical short-circuit.

• ❌ Never use a mild steel shield (420228/420237/etc.) with a non-ferrous process​ — The O₂-process shields are dimensioned for the 420407/420233/420242/420260/420406 swirl ring vortex. Using them with 420314/420323 swirl rings disrupts gas flow symmetry. Conversely, never use non-ferrous shields (420291/420309/etc.) with O₂ processes.

• ❌ Never mix swirl ring families​ — O₂-process swirl rings (420407/420233/420242/420260/420406) are NOT interchangeable with non-ferrous swirl rings (420314/420323/420358). The vane angles and gas metering orifices are fundamentally divergent.

• ❌ Never over-tighten 420200​ — Hand-tightening is mandatory. The precision face-stop geometry ensures correct axial preload. Using tools to torque the cap deforms the sealing face and destroys concentricity.

• ❌ Bevel/Robotic lead constraint​ — When servicing XPR torches on bevel/robotic applications, use only lead sets 428831–428836 (which include the extended 1.2 m strain relief) . The 6 m lead is compatible only with console gas assemblies 7.5 m or less .

Frequently Asked Questions (FAQ)

Q: Is the 420200 shield cap truly universal across all XPR300 processes from 30A to 300A?

A:​ Yes. Per Hypertherm's official consumables specification , part number 420200 is listed as the shield retaining cap in every single documented process configuration​ — 30A O₂/O₂ mirror cutting through 300A O₂/Air, and all non-ferrous processes (N₂/N₂, F5/N₂, Air/Air, N₂/H₂O VWI, H₂-Ar-N₂/N₂). The 420200's thread geometry, sealing face, and O-ring groove are dimensionally identical across all these applications. What changes is the shield​ (second position in the stack) — mild steel O₂ shields (420228/420237/420246/420255/420513/420273/420491) and non-ferrous shields (420291/420309/420300/420318/420327/420362/420469/420472/420475) are process-specific. But the 420200 that clamps them remains the same.

Q: My XPR300 is throwing double arc fault codes at 300A. Could the 420200 be the culprit?

A:​ It's possible but not the most common cause. The 420200's failure mode at 300A is typically face warping​ from thermal cycling, which tilts the shield microscopically. This tilt shifts the nozzle orifice off-axis from the swirl ring's vortex by 0.02–0.05mm — enough at 300A to break vortex symmetry and trigger double arcing. More commonly, double arcing at 300A is caused by: (1) hafnium pit depth exceeding 1.0mm on the 420276 electrode; (2) clogged or damaged 420406 swirl ring; (3) eroded 420279 nozzle bore. Inspect the 420200's sealing face for warping or cracking. If the face is no longer perfectly flat, replace it. If the face is intact, investigate the swirl ring and electrode first.

Q: Can I use the 420200 from my 80A O₂ process on a 300A N₂/H₂O VWI setup?

A:​ Yes, the 420200 itself is mechanically identical and will fit. However, you MUST replace the entire internal stack: the shield must change from a mild steel O₂ shield (e.g., 420246 at 80A) to a VWI non-ferrous shield (420300 at 80A N₂/H₂O), the nozzle from 420243 to 420290, the swirl ring from 420242 to 420323, and the electrode from 420240 to 420303. The 420365 nozzle retaining cap and 420368 water tube remain universal. The 420200 clamps whatever shield is installed — it doesn't care about the process, as long as the correct shield is in place.

Q: How long should a 420200 shield cap last in continuous 300A operation?

A:​ The 420200 is not a wear item in the traditional sense — it does not erode from arc exposure like the electrode or nozzle. Its failure modes are thermal cycling fatigue (face warping after thousands of 300A start/stop cycles) and mechanical damage (dropped torch, cross-threading). Under normal operating conditions at 300A with proper maintenance, a 420200 should last through many complete consumable stack change-outs (electrode/nozzle/swirl ring). The limiting factor is the electrode (420276 at 300A), which requires replacement when the hafnium pit exceeds 1.0mm. Replace the 420200 if you observe any face warping, thread damage, or O-ring groove deterioration.

Q: I'm running a robotic bevel cutting cell with XPR300. Are there special considerations for the 420200?

A:​ Yes. Per Hypertherm's official documentation, Bevel/Robotic lead sets 428831–428836 include an extended 1.2 m (48″) strain relief​ . This is a torch lead assembly difference, not a consumable difference — the 420200 and full consumable stack remain identical to standard XPR300. However, you must ensure the correct lead set is installed for your robotic application. Additionally, the 6 m (20′) lead is compatible only with console gas assemblies that are 7.5 m (24.6′) or less . The 420200's clamping force must remain consistent despite the robotic torch's dynamic motion — this is why HALANSM®'s micron-tolerance thread geometry is critical for bevel/robotic applications where the torch experiences continuous vibration and positional change.

Q: What's the difference between 420200 and 420365? They both look like retaining caps.

A:​ They serve different positions in the stack. The 420200 is the Shield Retaining Cap​ — it is the outermost cap that clamps the shield (e.g., 420491 at 300A O₂/Air) against the stack . The 420365 is the Nozzle Retaining Cap​ — it sits internally and clamps the nozzle against the swirl ring . The disassembly sequence per Hypertherm's manual is explicit: first remove 420200 (shield cap) to access the shield, then remove 420365 (nozzle retaining cap) to access the nozzle and swirl ring . Both are universal across all 30–300A XPR300 processes, but they occupy different axial positions and have different thread geometries.

The Bottom Line: Why The HALANSM® 420200 Is Engineered For 300A Physics

The XPR300 operates at the absolute extreme of air plasma cutting technology — 300A, 66.5kW, 100% duty cycle at 40°C​ . At this thermal regime, every component in the 7-piece consumable stack must perform flawlessly. The 420200 Shield Retaining Cap, while mechanically simple, bears enormous responsibility: it establishes the axial datum from which the entire plasma arc column achieves concentricity.

The cascaded clamping sequence — 420200 clamps shield against 420365, which clamps nozzle against swirl ring, which centers the vortex on the electrode's hafnium emitter — means that any dimensional error in 420200 propagates through the entire stack. At 30A, a 0.02mm face warp might be tolerated. At 300A, it is catastrophic.

HALANSM®'s engineering philosophy for the 420200 is rooted in replication-plus-enhancement:

• Replicate​ Hypertherm's OEM thread pitch, face flatness, and O-ring groove geometry to micron tolerance

• Enhance​ the sealing face with Silver Cutting™ mirror finishing to eliminate micro-leakage paths that disrupt shield plenum pressure

• Control​ the chrome-zirconium copper alloy microstructure through precision heat treatment for dimensional stability under 300A thermal cycling

• Verify​ thread engagement depth and face perpendicularity via go/no-go gauging against Hypertherm's reference standards

• Ensure​ the knurled grip geometry enables correct hand-tightening without slip or galling

The result is a shield retaining cap that delivers OEM-equivalent performance and service life, at a fraction of genuine Hypertherm cost — making HALANSM® the economically rational choice for fabricators operating XPR300 systems at any amperage from 30A to 300A, across all process gases from O₂ to H₂-Ar-N₂/N₂.

Forward compatibility note: Hypertherm's XPR300 starter kits (428616 mild steel, 428617/428619 stainless steel, 428618 mild steel with torch, 428945 Core console non-ferrous) all include genuine 420200 shield caps. For ongoing operations, HALANSM® 420200 provides a cost-effective, engineering-validated alternative that maintains full stack compatibility. The 420200 works seamlessly with Hypertherm's full ecosystem — from the QuickLock™ electrode system to Vented Water Injection™ shields to the 420368 water tube .

In 300A plasma cutting, the shield cap isn't just a screw-on cover — it is the component that determines whether your arc column stays coaxial or collapses into a double arc.​ Choose HALANSM® 420200 Shield Retaining Cap: engineered for the physics, priced for the fabricator.
