Nozzle 420234 is the 50A orifice component for Hypertherm XPR300/XPR170 torches operating on mild steel with O₂/Air gas. Its micro-precision bore focuses the plasma arc and gas column into a tight, stable jet—so you get squarer edges, less dross, and slower nozzle wear. Machined from high-conductivity copper with a smooth internal finish, it drops in exactly where Hypertherm 420234 sits.
420234
HALANSM
HLN-420234

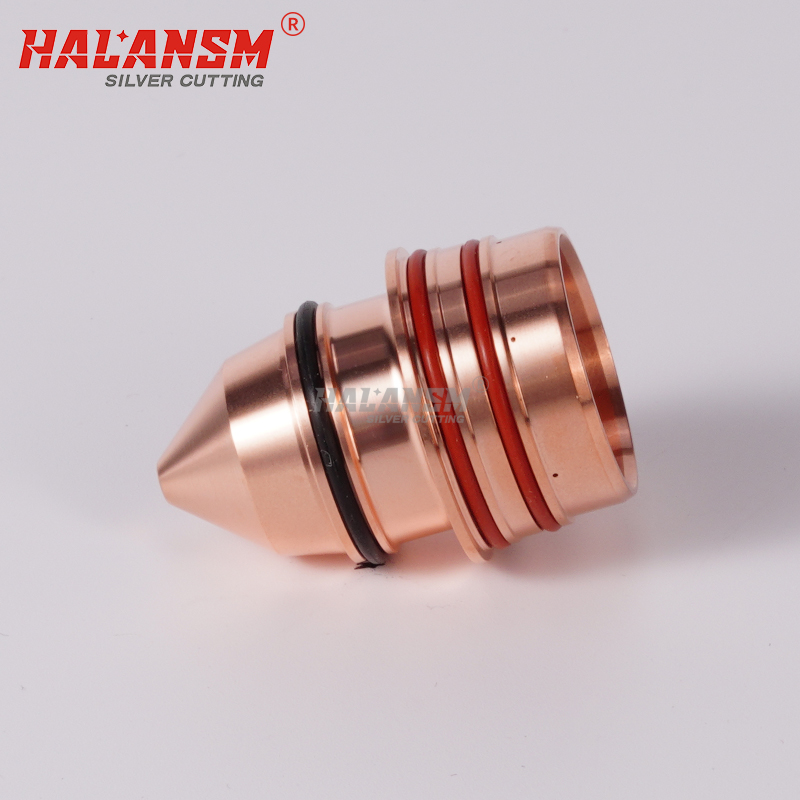

Nozzle 420234 For Hypertherm XPR300 Plasma Cutting Torch Consumables 50A
The nozzle is the component that decides how tight your plasma arc actually is. 420234 is the 50A mild-steel nozzle in the XPR consumable stack: it compresses the arc column and directs the high-velocity gas stream so the cut edge stays straight and the dross stays thin.
Key Features
Precision-Machined Orifice： Bore is finished to OEM tolerance so the plasma jet leaves the torch consistently—critical for ISO-range cut quality on thin-to-mid plate.
High Thermal Conductivity： Copper alloy body pulls heat away from the arc zone, keeping the nozzle shape stable and extending usable life between changes.
O₂/Air Mild Steel Geometry： Matched to the 50A shield/electrode/swirl-ring stack so gas sealing and flow alignment stay correct across long runs.
Drop-In Fit： Threads, length, and outer profile follow the Hypertherm 420234 envelope—no filing, no shimming, no guesswork.
Compatible 50A (O₂/Air) Stack Reference
Pos | Part | Ref # |
|---|---|---|
Electrode | 420231 | 420231 |
Swirl Ring | 420233 | 420233 |
Nozzle | 420234 | 420234 |
Retaining Cap | 420365 / 420200 | 420365 / 420200 |
Shield Cap | 420237 | 420237 |
Water Tube | 420368 | 420368 |
Real Shot: Actual product photos shown above represent the exact item you will receive.
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
