Black Nozzle Retaining Cap 420365 for Hypertherm XPR300 Plasma Cutting Torch

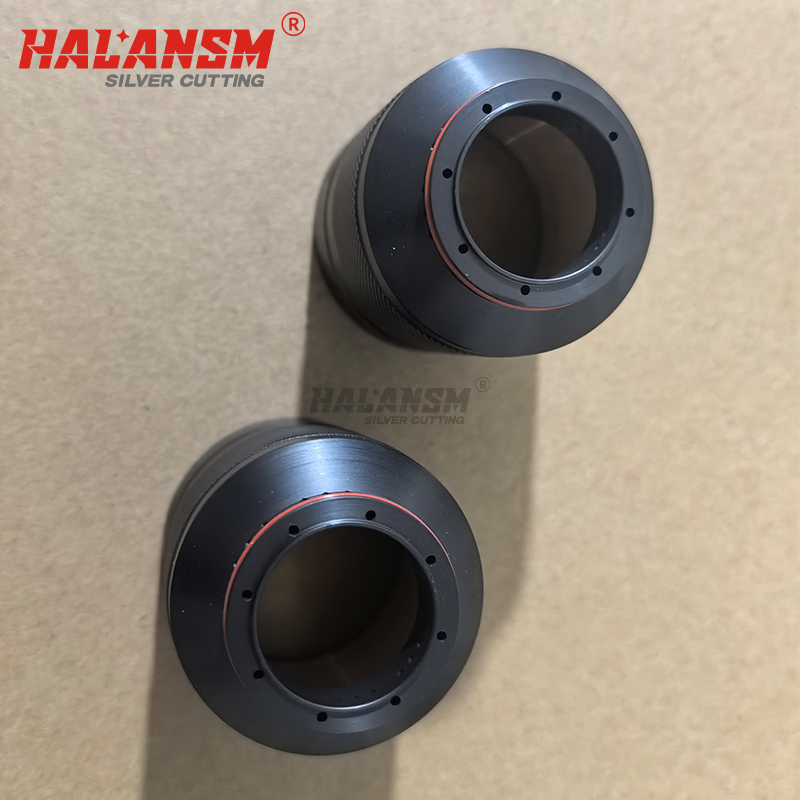

Black Anodized Nozzle Retaining Cap 420365 for Hypertherm XPR300 Plasma Torch

The retaining cap is the final critical layer in the plasma torch consumable assembly. It physically clamps the nozzle and swirl ring against the shield cap, maintaining precise axial alignment under extreme thermal stress. The HALANSM 420365 features a specialized black anodized coating that provides superior oxidation resistance compared to standard silver-plated copper caps, making it ideal for high-heat applications.

Key Engineering Advantages:

• Optimized Gas & Coolant Seals: The precisely machined concentric grooves accommodate high-temp O-rings to create a perfect hydraulic lock. This prevents shield gas bypass and eliminates coolant seepage, which are primary causes of erratic cuts and premature part failure.

• Peak Thermal Stability: Crafted from high-grade aluminum alloy and treated with a hard black anodized finish, this cap offers exceptional thermal conductivity and dimensional stability, resisting warping even after hundreds of pierces.

• Vibration Dampening: The internal thread and press-fit design minimize micro-vibrations during high-pressure cutting, significantly increasing the service life of the electrode and nozzle.

• Seamless Drop-In Fit: Manufactured to exact OEM tolerances to be fully compatible with Hypertherm XPR300 and XPR170 torches without requiring any modifications to the torch body.




Compatible Consumable Stack (Reference):

To maintain peak torch performance, the retaining cap must work in tandem with the correct stack components:

• Electrode: SilverPlus 420222 / Standard 220990

• Swirl Ring: 420407

• Nozzle: 420225 (30A) / 420180 (80A) / 420179 (130A) etc.

• Shield Cap: 420228 / 420229

• Water Tube: 420368




Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
