HALANSM® HLN-G971 aftermarket water tube replaces Kjellberg G971 .11.848.411.142 for HiFocus 280i/360i/440i PerCut 450M. Copper alloy cooling tube, 280-400A O2.
HLN-G971 / .11.848.411.142
HALANSM®
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Product Type
Cooling tube / water tube
OEM Reference
G971 / .11.848.411.142
Material
Copper alloy
Install Position
Through torch body, behind the electrode
HALANSM®
SILVER CUTTING
HLN-G971 / .11.848.411.142

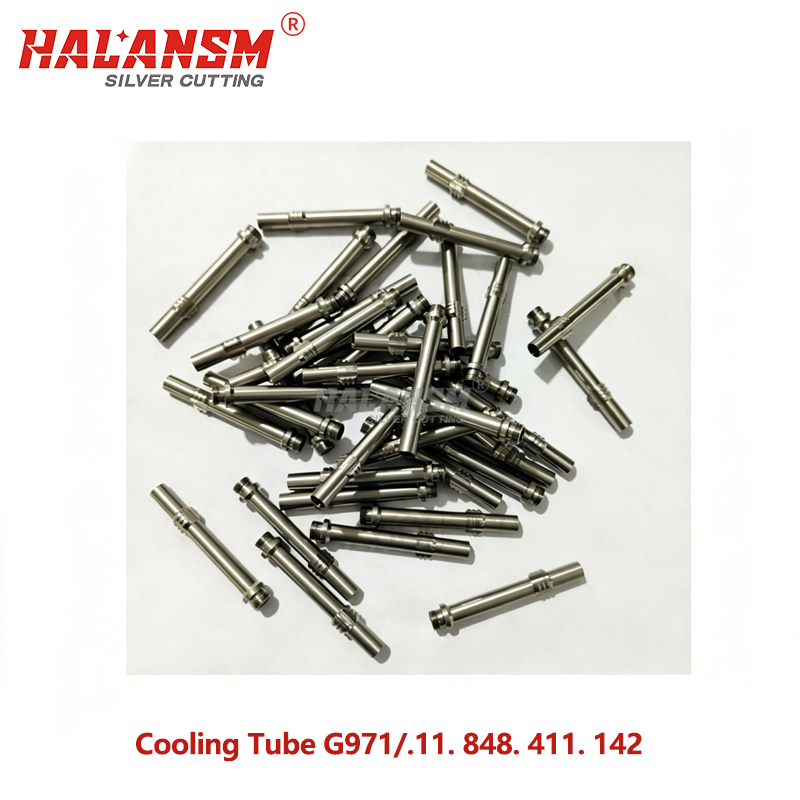

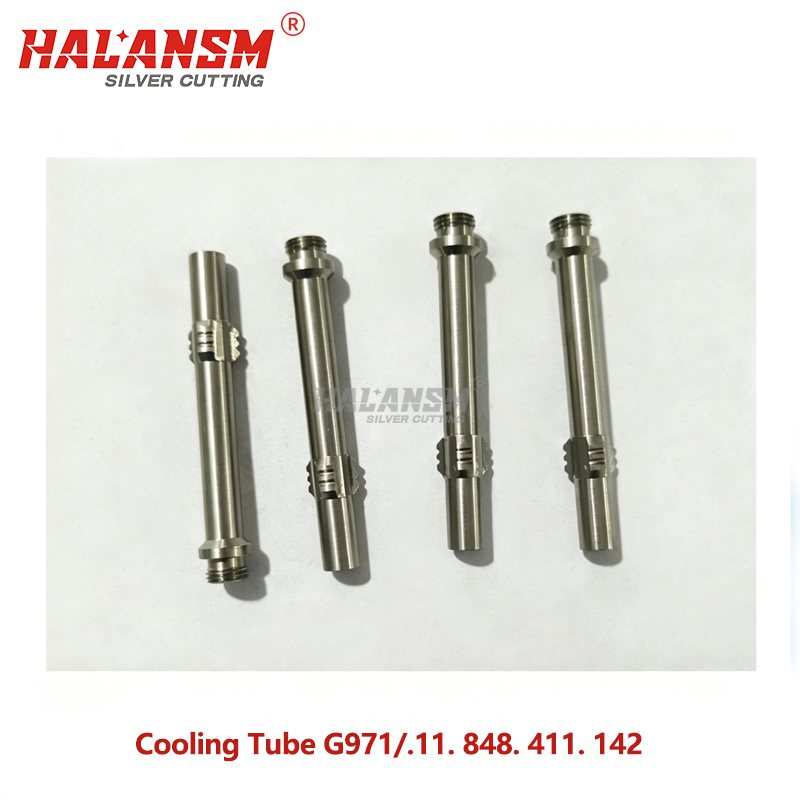

HALANSM® HLN-G971 Cooling Tube G971 Water Tube .11.848.411.142 for Kjellberg Plasma Cutting Torch
HALANSM® HLN-G971 is an aftermarket plasma cooling tube made of copper alloy, built for Kjellberg HiFocus 280i / 360i / 440i and PerCut 450M torches to carry cooling water through the torch body behind the electrode. It is a water tube replacement compatible with Kjellberg reference G971 / .11.848.411.142, supplied as a non-original aftermarket part.
The HLN-G971 water tube runs through the center of the torch body and sits behind the electrode. Its job is to move cooling water past the hottest parts of the stack so the electrode, nozzle and swirl ring stay within working temperature.
Cooling is what lets the torch hold 280A to 400A O2 cutting for long passes. A tube that kinks, scales up inside, or seats poorly cuts flow and lets heat build up in the electrode holder. That shows up first as uneven arc, then as scored nozzle seats and shortened electrode life.
What it does:
- Carries cooling water through the torch body behind the electrode
- Keeps the electrode and nozzle stack within working temperature
- Maintains flow so the arc stays stable through long 280A to 400A passes
- Replaces Kjellberg G971 / .11.848.411.142 as an aftermarket water tube
Key Advantages
Copper Tube Body
Copper conducts heat well and resists the temperature swing at the electrode back face. The HLN-G971 uses copper alloy for the tube body, matching thermal load on HiFocus 280i class systems.
Consistent Inner Bore
Flow depends on a clean, even bore. Each batch is checked for bore and joint consistency so flow stays steady instead of dropping off mid-shift.
Fits the .11.848.411 Family
End form, length and seat follow the G971 / .11.848.411.142 format. It lines up with the G121 gas guide and G032Y electrode rather than the 20-200A .221 family water tubes.
Aftermarket, Not Original
HALANSM® parts are aftermarket consumables compatible with Kjellberg references. They are not sold as original Kjellberg parts and no manufacturer authorization is claimed.
Specifications
Label
Value
Part Type
Cooling tube / water tube
OEM Reference
G971 / .11.848.411.142
Material
Copper alloy
Install Position
Through torch body, behind the electrode
Length
Confirm exact specs with us
Inner Diameter
Confirm exact specs with us
End Form / Fitting
Confirm exact specs with us
Working Pressure
Confirm exact specs with us
Temperature Range
Confirm exact specs with us
Coating
Confirm exact specs with us
Brand Marking
Confirm exact specs with us
Compatible Equipment
Verified stack match:
- Kjellberg HiFocus 280i neo
- Kjellberg HiFocus 360i neo
- Kjellberg HiFocus 440i neo
- PerCut 450M torch
Provide your torch model and original part number for fitment check before ordering. This water tube is not for the 20-200A .221 family stacks.
Selection Guide: Which Water Tube for Which Current Band
Current Band
Water Tube
Ref
35-200A
G901Y class
.11.848.201.142
280-360A
G931Y class
.11.848.401.142
280-400A Ar/H2
G971
.11.848.411.142
400A PerCut 450M
G971
.11.848.411.142
G971 is the 280-400A water tube. Do not fit a 20-200A .201 family tube into a HiFocus 440i stack, and do not use a 280-360A .401 tube where the console calls for the .411 Ar/H2 cooling path.
Which Parts Sit Around the G971
For 280A O2 on HiFocus 280i / 360i / 440i:
Position
Part
Ref
Cooling tube
HLN-G971
.11.848.411.142
Electrode
G032Y
.11.848.421.310
Nozzle
G2326Y
.11.848.421.426
Gas guide
G121
.11.848.421.145
Nozzle cap
G3249
.11.848.401.1649
Swirl gas cap
G4350
.11.848.401.1550
For 400A Ar/H2 on PerCut 450M the water tube stays G971, but the electrode moves to G071, the nozzle to G2729 and the gas guide to G125. Those are different parts and must be ordered as a matched set.
Installation and Handling
Power down the plasma system and lock out the main breaker.
Release water pressure from the cooling circuit and disconnect the torch hose.
Remove the worn nozzle, gas guide, electrode and the old water tube from the rear of the torch body.
Check the bore for scale or debris and the seat for scoring. Do not ream the bore with a tool.
Feed HLN-G971 through from the rear, seat the electrode, then fit gas guide, nozzle, nozzle cap and swirl gas cap in order.
Reconnect the cooling hose, purge air from the circuit, then run a low-current test cut before full 280A to 400A production.
Storage and Service Life
Store dry, away from cutting dust and moisture
Hang or lay flat; never coil tightly or kink the tube
Replace if the bore shows scale, the end form is deformed, or flow drops at the console
A tube that looks clean but cuts with a wandering arc usually has reduced flow or a poor seat
Frequently Asked Questions
Is the HLN-G971 a water tube or a swirl ring?
It is a water tube, also called a cooling tube. It carries cooling water behind the electrode, not gas. Do not fit it in place of a swirl ring or gas guide.
What material is the G971 tube made of?
Copper alloy. Copper handles the temperature swing at the electrode back face on HiFocus 280i class systems.
Which torches take the .11.848.411.142 water tube?
HiFocus 280i, 360i and 440i neo plus PerCut 450M. For 600i, FineFocus and PA-S torches, provide your torch model and original part number for fitment check.
Can I use G971 on a 20-200A torch?
No. The 20-200A stacks use the .201 family water tubes such as G901Y. G971 is the 280-400A .411 family tube.
Why does my arc wander after fitting a new tube?
Check cooling flow first, then the electrode and gas guide seat. Low flow or a poor seat lets heat build up and the arc column drift off-center.
How should spare water tubes be stored?
Dry, flat or loosely hung, never kinked. Inspect the bore and end form before fitment and purge the circuit after installation.
