Powermax125 Consumables Series Engineering: Complete 30–125A Stack Cross-Reference With HALANSM® Precision Replication

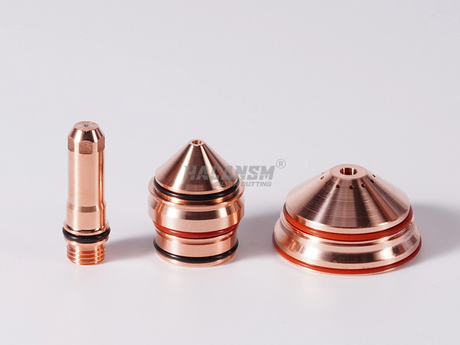

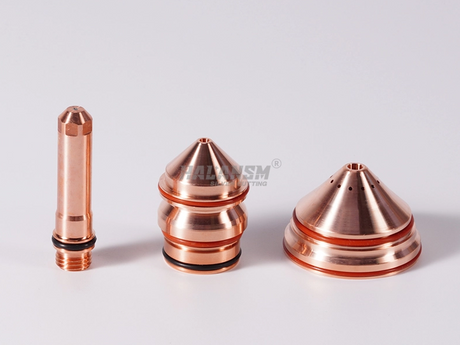

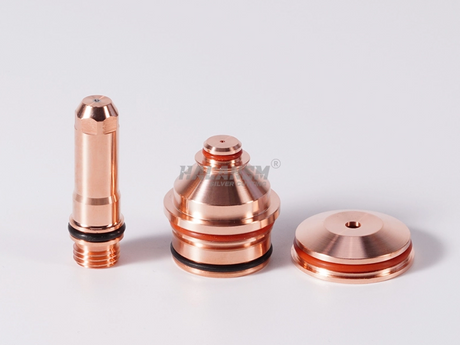

The Powermax125 Consumables Series: Five Process Stacks, One Physics Foundation

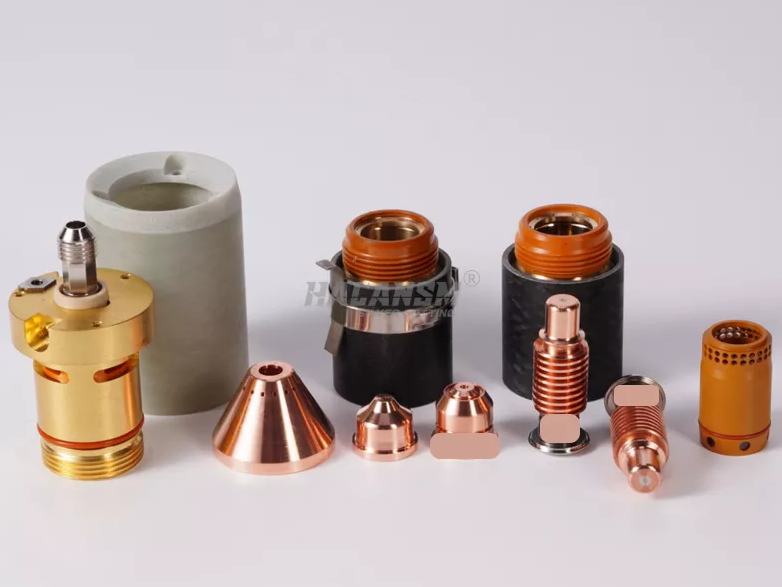

The HALANSM® Powermax125 Consumables Series​ is a complete family of plasma arc-constriction components engineered for Hypertherm's Powermax125 system with Duramax HyAmp handheld and mechanized torches, covering the full 30–125A operating range . Unlike water-cooled heavy industrial systems, the Powermax125 operates with air-cooled torches that require no special cooling procedures , which makes the precision of every consumable component — from the hafnium emitter electrode to the swirl ring vortex generator — the single most critical factor in cut quality and service life.

Across all five process stacks in this series (drag-cutting 45/65/125A, mechanized 125A, gouging, and FineCut), the swirl ring 220997 remains constant​ — it is the one component shared by every configuration from 30A to 125A . This means the 220997's vortex-generating geometry is the physical anchor of the entire Powermax125 platform: it creates the centripetal force that centers the plasma arc on the hafnium emitter, regardless of amperage or process. The variable components — nozzle bore diameter and shield geometry — are then tuned to match the specific amperage and application.

Why Does Hafnium Emitter Physics Govern The Entire 30–125A Range?

To understand why the 220971 electrode serves the entire 30–125A range while nozzles change per amperage, we must examine the arc attachment mechanism.

Hafnium Work Function And Arc Root Attachment

The 220971 electrode features a hafnium insert embedded in a copper-chromium-zirconium (CuCrZr) holder. Hafnium has a low work function (~3.5 eV) and an exceptionally high melting point (2,233°C / 4,051°F) — properties that make it the ideal arc root attachment point . When the pilot arc initiates, the hafnium emits electrons via thermionic emission, establishing a stable, low-resistance path for the main arc. The 220971's hafnium cavity geometry is dimensioned so that at any current between 30A and 125A, the arc root remains pinned to the center of the hafnium button. This is why a single electrode part number serves the entire amperage range — the hafnium emitter's job does not change with current; only the volume of ionized gas around it scales with amperage, which is managed by the nozzle.

Swirl Ring Vortex And Arc Centering

The 220997 swirl ring sits immediately upstream of the nozzle. Its internal vanes impart a helical rotation to the incoming compressed air, creating a cyclonic vortex. This vortex serves two physical functions:

1. Centripetal arc pinning​ — The rotating gas column generates a radial pressure gradient that forces the plasma arc to remain coaxial with the torch body, preventing the arc root from wandering off the hafnium emitter

2. Laminar core establishment​ — The vortex organizes the gas flow into a coherent annular pattern, leaving a low-turbulence central core through which the arc column passes

At 125A, the electromagnetic forces trying to destabilize the arc are at their maximum. The 220997's vortex must counteract these forces continuously. Any disruption to the swirl ring's gas injection orifices — caused by spatter, debris, or dimensional variance in aftermarket copies — breaks the vortex symmetry, allowing the arc to "wobble" and strike the nozzle wall, initiating double arcing.

Nozzle Bore Constriction And Laminar Core Formation

The nozzle (220975 at 125A, 420169 at 65A, 420158 at 45A) provides the final geometrical constraint on the plasma arc. Its converging-diverging bore profile:

• Accelerates​ the swirl-organized gas to supersonic velocity at the orifice exit

• Mechanically pins​ the arc column to a precise diameter at the exit plane

• Establishes a laminar flow core​ — a low-turbulence central gas column that thermally insulates the arc from the nozzle wall

The bore diameter is amperage-specific: higher amperage requires a wider orifice to accommodate the larger arc column without the arc striking the bore wall. This is why 125A uses 220975 (widest bore), 65A uses 420169 (intermediate), and 45A uses 420158 (narrowest). Installing a 125A nozzle at 45A would create an overly wide arc with poor energy density; installing a 45A nozzle at 125A would cause immediate double arcing as the enlarged arc column strikes the narrow bore wall.

Double Arcing Mechanics In The Powermax125 Series

Double arcing occurs when the plasma arc — instead of passing cleanly through the nozzle orifice — attaches simultaneously to the nozzle tip and an intermediate surface (shield or retaining cap). In the Powermax125's air-cooled architecture, double arcing is particularly destructive because there is no water cooling to absorb the thermal spike. The failure sequence is:

1. Nozzle bore wear or swirl ring clogging disrupts the laminar core

2. Arc root wanders off the hafnium center

3. Arc strikes the nozzle bore wall → localized copper vaporization

4. Molten copper bridges the gap to the shield → full double arc

5. Torch body damage within seconds

This is why Hypertherm's manual explicitly warns: "As a general rule, a set of consumables lasts approximately 1 to 3 hours of real 'arc-on' time for 125A handheld cutting" — operating beyond this window dramatically increases double arcing risk .

The Complete Five-Stack Consumable Cross-Reference Matrix

Per Hypertherm's official Powermax125 consumables specification , here is the authoritative cross-reference for all five process stacks:

Source: Hypertherm Powermax125 Operator Manual and Hypertherm Duramax HyAmp Consumables Specification

⚠️ Universal constraints across all Powermax125 stacks:

• Swirl ring 220997 is mandatory for all processes​ — it is the only swirl ring in the Powermax125 family . Substituting with any other swirl ring (e.g., from Powermax105/1650 systems) breaks vortex symmetry and causes immediate arc instability.

• Electrode 220971 is mandatory for all processes from 30–125A​ . It is not interchangeable with Powermax105's 220842 electrode.

• Powermax125 is air-cooled​ — unlike water-cooled MAXPRO200 extreme bevel systems, there is no mandatory longer water tube requirement. The torch relies entirely on compressed air cooling .

• Ohmic retaining cap 420156​ can replace standard 220977 only​ in mechanized and FineCut applications where height sensing is required . Using 420156 in a drag-cutting handheld configuration is incorrect.

Sister-Part Divergence: Why Nozzle Bore Diameter Dictates Amperage Rating

A frequent source of cut quality degradation is the assumption that any nozzle in the family can be used at any amperage. The physics do not permit this.

Source: Hypertherm Powermax125 Consumables Specification

The critical engineering insight: Because the 220997 swirl ring is shared across all amperages , the only variables that change the physical character of the plasma arc are the nozzle bore and the shield geometry. The 220997 consistently generates the same vortex pattern; the nozzle then constricts that vortex to the diameter appropriate for the target amperage. This is why:

• ✅ You can​ switch between 45A, 65A, and 125A drag-cutting by changing only the nozzle (and shield) — the electrode (220971) and swirl ring (220997) remain constant

• ❌ You cannot​ use a 125A nozzle (220975) at 45A — the oversized bore creates an under-constricted arc with poor energy density, resulting in excessive dross and wide kerf

• ❌ You cannot​ use a 45A nozzle (420158) at 125A — the undersized bore causes immediate double arcing as the enlarged 125A arc column strikes the narrow bore wall

Application Scenarios: Matching Stack To Fabrication Demand

Source: Hypertherm Powermax125 Consumables Specification and Powermax125 Operator Manual

HALANSM® Powermax125 Series: Verifiable Engineering Advantages

HALANSM® manufactures every component in the Powermax125 consumables series to Hypertherm's published specifications. The engineering facts:

1. Bore Geometry Replication To Micron Tolerance

Each nozzle (220975, 420169, 420158, 420001, 420151) is machined to Hypertherm's converging-diverging bore specification to within micron tolerance. At 125A, any bore variance of 0.01–0.03mm disrupts the laminar gas core and triggers double arcing. HALANSM®'s CNC machining process holds the orifice profile, exit angle, and swirl ring mating interface to OEM dimensions, ensuring the plasma arc exits with identical velocity, focus, and trajectory as genuine Hypertherm parts.

2. Silver Cutting™ Mirror-Finish Internal Bore

The internal bore of every HALANSM® nozzle receives the proprietary Silver Cutting™​ mirror polish. This eliminates micro-scratches and tooling marks that would otherwise create arc attachment sites on the bore wall — the root cause of double arcing. The mirror finish reduces micro-turbulence in the gas flow, maintaining laminar core stability even at 125A where arc forces are at their maximum.

3. Hafnium Emitter Seat Precision (220971 Electrode)

The 220971 electrode's hafnium insert is pressed into the CuCrZr holder using a controlled-force process that ensures concentricity within 5 microns. This concentricity is critical: any offset of the hafnium button from the bore axis causes the arc root to attach asymmetrically, leading to uneven nozzle wear. HALANSM® validates every 220971 electrode against a go/no-go gauge that verifies hafnium centeredness before shipment.

4. Swirl Ring Vane Geometry Verification (220997)

The 220997 swirl ring's internal vanes are the most geometrically sensitive component in the stack — they determine the vortex characteristics that center the arc. HALANSM® machines each 220997's vanes to OEM vane angle and depth specifications, then flow-tests every unit with compressed air to verify the vortex pattern matches Hypertherm's reference. This verification eliminates arc attachment drift caused by swirl/vane mismatch — the #1 cause of premature nozzle failure in the Powermax125 series.

5. CuCrZr Microstructure Control

All shields (420000, 420172, 220976, 420112, 420152) and nozzles are manufactured from high-purity copper-chromium-zirconium (CuCrZr) alloy. HALANSM® controls the grain structure through precision heat treatment, ensuring dimensional stability under the thermal gradient of 125A cutting — where the torch operates at 100% duty cycle . This microstructural discipline prevents the "bell-mouthing" deformation that plagues inferior nozzles and extends shield service life.

6. Thread And O-Ring Groove Integrity

The retaining caps (220977, 420156) and shield threaded interfaces are high-stress zones. HALANSM® rolls threads post-machining to ensure maximum strength and prevents seizure during high-heat cycling. O-ring grooves are machined to exact tolerances to guarantee leak-proof seals — a gas leak at the swirl ring interface causes arc instability and rapid consumable failure.

Wear Diagnostics Across The Powermax125 Series

Source: Hypertherm Powermax125 Operator Manual wear guidelines

The HALANSM® advantage: By holding bore geometry and Silver Cutting™ finish to OEM specification, operators achieve the full 1–3 hours of arc-on time at 125A that Hypertherm specifies, maximizing consumable service life and minimizing cost-per-cut.

Mandatory Installation Protocol For All Stacks

Per Hypertherm's operator manual , the non-negotiable sequence:

1. Power OFF​ — "Make sure the power is OFF before changing consumables"

2. Pull off the vinyl cap​ on the torch tip

3. Install the electrode (220971)​ — seat fully into the torch body

4. Install the swirl ring (220997)​ — ensure O-rings are lubricated with a thin layer of O-ring lubricant

5. Install the nozzle​ (220975 for 125A, 420169 for 65A, 420158 for 45A, 420001 for gouging, 420151 for FineCut)

6. Install the shield​ (420000 hand drag / 220976 mech for 125A; 420172 for 45/65A hand; 420112 for gouging; 420152 for FineCut)

7. Thread on the retaining cap​ (220977 standard; 420156 ohmic for mechanized height sensing )

8. Hand-tighten​ — do NOT over-tighten; over-torquing distorts the gas path and causes arc wander

⚠️ Five critical incompatibilities to never violate:

• ❌ Swirl ring substitution​ — Only 220997 works across the entire Powermax125 family. Powermax105's 220994 or MAXPRO200's 220488 will NOT fit or function correctly.

• ❌ Electrode substitution​ — Only 220971 serves 30–125A. Powermax105's 220842 has different geometry and is incompatible.

• ❌ Over-amperage nozzle​ — Never install a 45A nozzle (420158) when cutting above 45A. The arc will double-arc within seconds.

• ❌ Ohmic cap misuse​ — The 420156 ohmic retaining cap is ONLY for mechanized applications requiring height sensing. Using it in handheld drag-cutting is incorrect.

• ❌ Powermax125 is air-cooled​ — There is no water tube requirement. Do NOT attempt to install water-cooled consumables from MAXPRO200 or other liquid-cooled systems.

Frequently Asked Questions (FAQ)

Q: Can I use the 125A nozzle (220975) for thin sheet cutting if I just run the machine at 45A?

A:​ No. While the Powermax125 can be current-set to 45A, the 220975 nozzle's wide bore is dimensioned for the 65–125A arc column. At 45A, the arc is under-constricted, producing a wide, low-energy-density plasma jet that causes excessive dross, wide kerf, and poor edge quality. You must install the 420158 nozzle for proper 45A operation .

Q: Why does my nozzle wear out faster than the "1–3 hours of arc-on time" Hypertherm specifies?

A:​ Several factors reduce consumable life: cutting with oil-contaminated or moist air, piercing thick plate repeatedly (vs. edge starting), operating in continuous pilot arc mode, incorrect torch-to-work standoff, or using mismatched consumables . Verify your air supply quality, use edge starts whenever possible, and ensure all five consumable components are from the same series and correctly seated.

Q: Is the 220997 swirl ring really the same for 45A and 125A? How does one swirl ring serve such a wide amperage range?

A:​ Yes, the 220997 is the single swirl ring for the entire 30–125A Powermax125 family . The swirl ring's job is to impart vortex rotation to the gas — this function is amperage-independent. The nozzle then constricts that vortex to the diameter appropriate for the amperage. The 220997 consistently generates the correct vortex; the nozzle bore does the amperage-specific constriction. This modular design is why Powermax125 operators only need one swirl ring part number in stock.

Q: Can I use HALANSM® Powermax125 consumables on a Powermax105 or Powermax85 system?

A:​ Partial compatibility exists. Per Hypertherm's documentation, "Duramax HyAmp torches and consumables are also compatible for use with Powermax65/85/105 systems" . However, the electrode differs: Powermax105 uses electrode 220842, not 220971. While the 220997 swirl ring and shield geometries share platform lineage, you must verify the exact consumable stack for your specific system model. HALANSM® recommends using the exact OEM-specified stack for your machine to guarantee performance.

Q: What happens if I overtighten the retaining cap (220977)?

A:​ Over-tightening distorts the precision-machined gas paths and can crack the shield or nozzle. The manual instructs: "Thread the retaining cap snug by hand, then stop before you distort the gas path" . Over-torquing causes gas leakage at the seal interface, leading to arc instability, double arcing, and premature failure of all stack components. Hand-tight plus a small fractional turn is sufficient.

Q: My cut suddenly developed a bevel angle and excessive dross. Which consumable is failing?

A:​ A developing bevel combined with dross typically indicates the nozzle orifice is wearing out of round, OR the swirl ring's vortex is disrupted . Check the nozzle (220975/420169/420158) for a non-round center hole or flashover marks. If the nozzle is intact, remove and inspect the 220997 swirl ring for clogged gas holes or damaged O-rings. Also verify the electrode (220971) hafnium pit depth has not exceeded 1.0mm . Replace whichever component shows wear — do not wait for catastrophic failure.

The Bottom Line: Why The HALANSM® Powermax125 Series Is Engineered For The Physics

The Powermax125 consumables series represents a modular, air-cooled plasma cutting ecosystem spanning 30–125A across five distinct processes — drag-cutting, mechanized cutting, Max Removal gouging, Max Control gouging, and FineCut+ . At the heart of this system is a single constant: the 220997 swirl ring, whose vortex physics anchors arc centering across the entire amperage range. Around this constant, the variable components — nozzle bore diameter, shield geometry, and retaining cap type — are tuned to match the specific process demand.

At 125A, the system operates at 100% duty cycle — 10 minutes of arc-on per 10 minutes of operation . In this regime, the margin for error in bore geometry, swirl ring vane angle, hafnium concentricity, and surface finish approaches zero. Generic consumables — with inconsistent orifice dimensions, unverified swirl vane geometry, or inadequate bore finishing — fail rapidly, triggering double arcing and torch damage.

HALANSM®'s engineering philosophy for the Powermax125 series is rooted in replication-plus-enhancement:

• Replicate​ Hypertherm's OEM bore geometries to micron tolerance across all five stacks

• Enhance​ internal bores with Silver Cutting™ mirror finishing to eliminate double-arc initiation sites

• Control​ CuCrZr microstructural integrity for thermal shock resistance at 125A with 100% duty cycle

• Verify​ 220997 swirl ring vane geometry with compressed-air flow testing against Hypertherm's reference vortex pattern

• Validate​ 220971 hafnium emitter concentricity to within 5 microns

• Ensure​ thread integrity and O-ring groove precision to prevent gas path distortion

The result is a consumable series that delivers OEM-equivalent cut quality and the full 1–3 hours of arc-on service life at 125A , at a fraction of genuine Hypertherm cost — making HALANSM® the economically rational choice for fabricators operating Powermax125 systems, whether in handheld drag-cutting, CNC mechanized production, or robotic cutting applications.

In 125A plasma cutting, consumables aren't just wear items — they are the components that determine whether your cut is clean or scrapped.​ Choose HALANSM® Powermax125 Consumables Series: engineered for the physics, priced for the fabricator.
