HALANSM® HLN-3DM8 is an aftermarket M8 3D laser nozzle sized OD15mm x H19mm x thread M8, built for RayTools, WSX, Precitec and OSPRI 3D bevel and pipe cutting heads to deliver stable assist-gas performance at tilted angles.
Product Overview

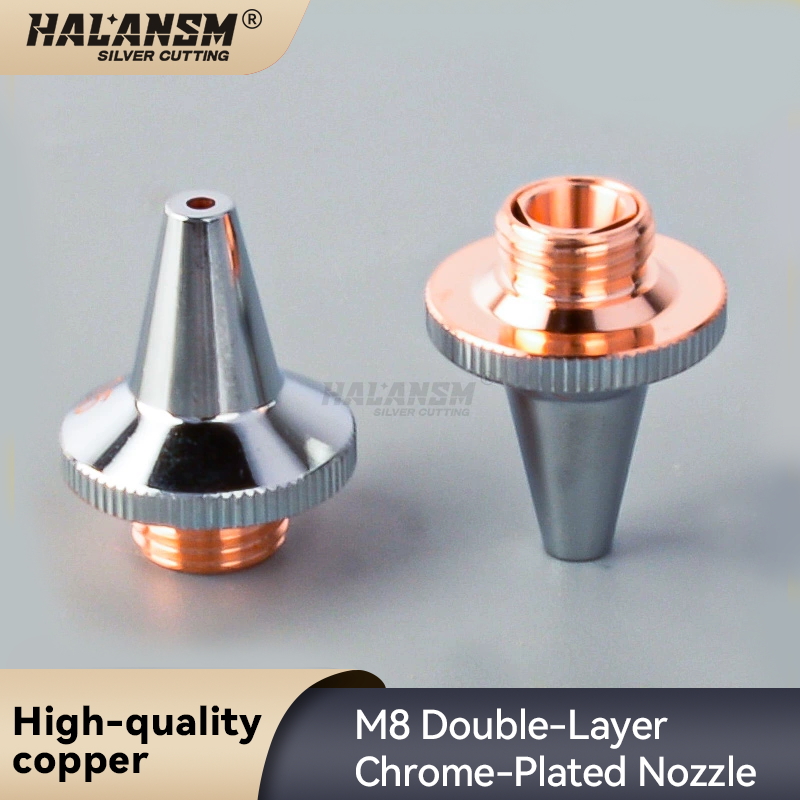

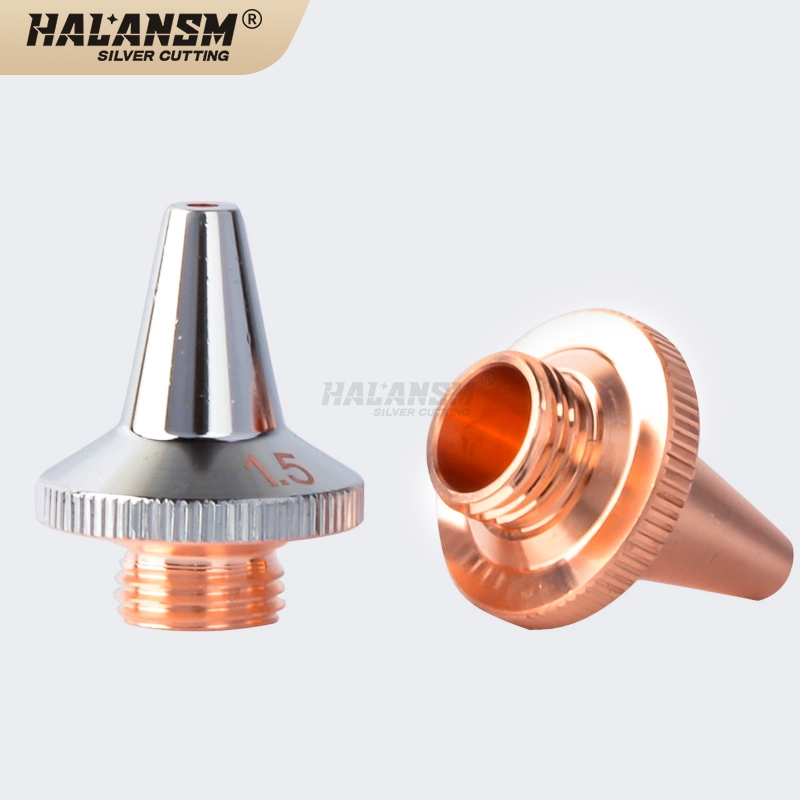

The HALANSM® HLN-3DM8 series is an aftermarket 3D laser cutting nozzle for bevel, pipe and profile cutting. Mounted at the tip of the cutting head, it keeps the assist gas jet coaxial with the tilted beam during multi-angle processing. The knurled T2 copper body dissipates heat fast and allows tool-free hand replacement. The family covers 24 SKUs: single-layer natural copper and double-layer chrome-plated, calibers 0.8mm to 5.0mm.
Key Advantages
Stable 3D Cutting Performance
Precision M8 thread with OD15 x H19 dimensions holds concentricity through bevel and rotary cuts.
Optimized Assist Gas Flow
Single layer for nitrogen or air; double-layer chrome-plated structure for oxygen cutting carbon steel.
Anti-Slag and Durable Surface
Chrome plating on double-layer nozzles resists spatter adhesion, cutting downtime and rework.
Full Caliber Coverage
24 SKUs from 0.8mm to 5.0mm cover thin sheet piercing through thick plate processing.
· M8 D15 H15: alternate 3D head configurations; confirm with supplier.
· M6 D11.5 H15.5: compact 3D heads; different thread, not interchangeable.
· M11 D28 H15: standard 2D flat-sheet heads; different application.
Compatible Equipment / Application
HALANSM® HLN-3DM8 is an aftermarket compatible replacement for heads that take a D15 x H19mm M8 nozzle:
· RayTools 3D: BM110-3D, BM111-3D, BD04K-3D, BS06K-3D, BS12K-3D and alike.
· WSX / OSPRI 3D pipe and profile cutting heads.
· Precitec 3D bevel cutting systems.
· Other M8 D15 H19 3D fiber laser cutting heads.
RayTools, WSX, Precitec and OSPRI are third-party trademarks; HALANSM® HLN-3DM8 is an aftermarket compatible part, not factory OEM. Provide your head model and original part number for fitment check.
Installation and Handling
· Power down the laser and let the cutting head cool completely.
· Remove the worn nozzle by hand; avoid tools that can cross-thread the M8 seat.
· Clean the mounting seat and threads of spatter and debris.
· Align the new HALANSM® nozzle and thread it in by hand until flush and centered.
· Run a low-power test cut to verify alignment, standoff and gas flow before production.
· Store spares sealed and dry, away from moisture and metal debris.
Frequently Asked Questions
What laser heads fit the HALANSM® HLN-3DM8 nozzle?
It fits 3D bevel and pipe heads with OD15mm, H19mm and M8 thread, including RayTools 3D, WSX, OSPRI and Precitec. Provide your head model for fitment check.
What is the difference between single-layer and double-layer M8 nozzles?
Single-layer natural copper is for nitrogen or air cutting stainless and aluminum. Double-layer chrome-plated is for oxygen cutting carbon steel with stronger spatter resistance.
How do I select the correct caliber for my M8 3D nozzle?
Smaller bores (0.8-1.5mm) suit thin sheet and fine piercing; larger bores (2.5-5.0mm) suit thick plate at higher power. Match your cutting chart.
Is the HALANSM® HLN-3DM8 an original equipment part?
No. It is an aftermarket compatible replacement. Brand names are referenced only for compatibility.
What causes poor cut quality after installing a new M8 nozzle?
Wrong caliber, poor concentricity, dirty threads or wrong layer type. Clean thoroughly, seat by hand, then run a test cut before full production.
How should I store these nozzles to extend service life?
Keep them in original sealed packaging, dry and away from moisture or metal debris. Inspect the orifice regularly for wear or spatter buildup.
