HALANSM® D28/D32 regular laser nozzle, OD28 H15 M11 and OD32 H15 M14, single/double layer, chrome plated. For RayTools, WSX, Precitec, BOCI and Hans/HSG heads.
HLN-REG-D28D32
HALANSM®
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Type
Fiber Laser Cutting Nozzle (Regular / Standard Spray)
Material
High-quality copper (T2), natural color or chrome plated
Layers
Single layer / Double layer
HALANSM®
SILVER CUTTING
HLN-REG-D28D32

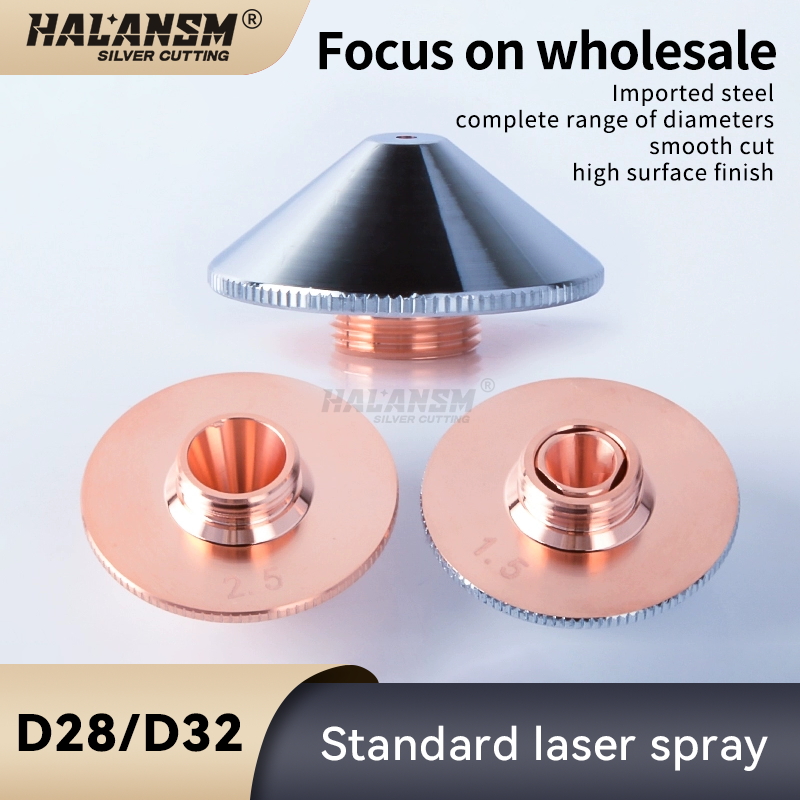

HALANSM® Regular Laser Nozzle D28 / D32
Aftermarket standard laser spray nozzle, OD28 x H15 x M11 and OD32 x H15 x M14, single or double layer, natural copper or chrome plated. For RayTools, WSX, Precitec, BOCI, OSPRI and Hans/HSG-compatible fiber laser cutting heads.
HALANSM® HLN-REG-D28D32 is an aftermarket regular laser nozzle offered in two standard sizes — OD28 x H15 x thread M11 and OD32 x H15 x thread M14 — built for RayTools, WSX, Precitec, BOCI and Hans/HSG-compatible cutting heads to deliver smooth cuts with high surface finish and stable gas flow.
Product Overview
The regular laser spray nozzle is a wear consumable mounted at the bottom of the fiber laser cutting head. Its bore channels the assist gas through the focus zone to eject molten slag, while the conical spray profile stabilizes the gas boundary layer for a clean cut face.
HLN-REG-D28D32 covers the most common D28 and D32 interfaces found on mainstream cutting heads. The mushroom profile, toothed flange and precision bore are machined in one pass for consistent concentricity with the ceramic ring seat.
Key Advantages
High Surface Finish, Smooth Cut
CNC-machined bore with controlled concentricity keeps the gas jet centered on the beam, reducing turbulence, burr and slag adhesion across the full calibration range.
Single and Double Layer

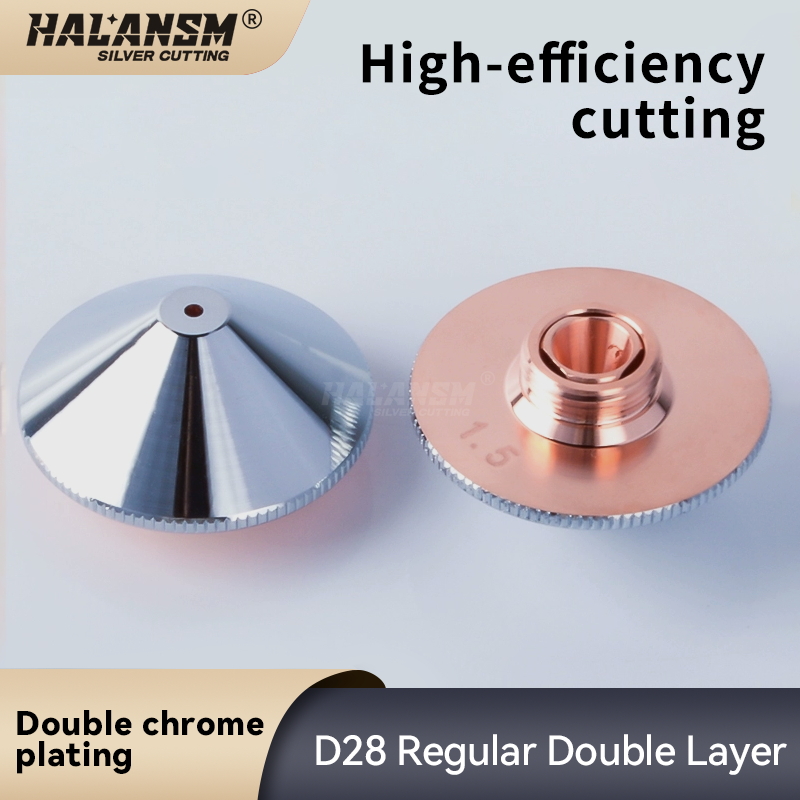

Single layer for nitrogen or air assist on stainless steel, aluminum and non-ferrous sheet. Double layer for oxygen assist on carbon steel, with an annular gas gap that stabilizes the flow field at higher pressure.

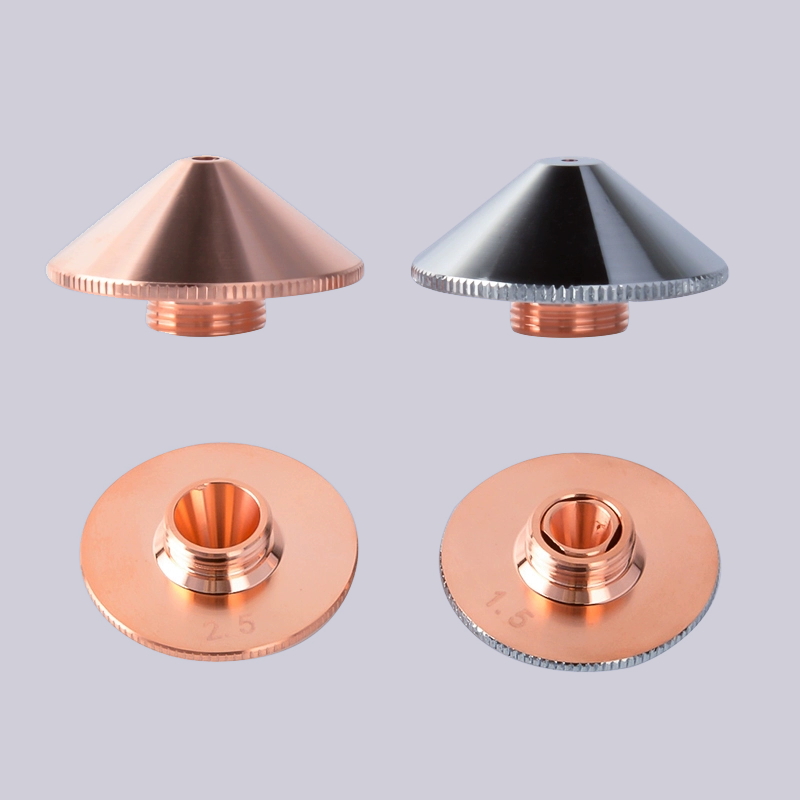

Natural Copper or Chrome Plated
T2-grade copper for thermal and electrical conductivity; optional chrome plating raises surface hardness and oxidation resistance for longer service in heavy-duty cutting.
Full Range of Diameters

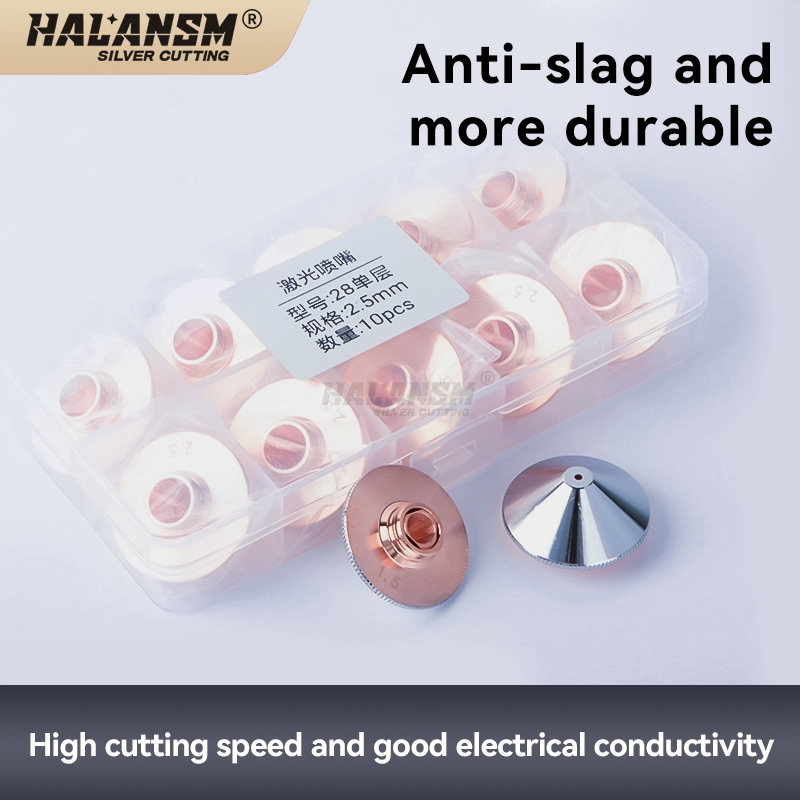

Calibers from 0.8 to 6.0 mm cover thin-sheet finishing through thick-plate processing. Boxed 10 pcs per specification for batch-consistent replacement.
Specifications
Part Type: Fiber Laser Cutting Nozzle (Regular / Standard Spray)
Material: High-quality copper (T2), natural color or chrome plated
Primary fit: RayTools (BT240S, BM109, BM110, BM111, BM114S and BS / BM series), WSX (NC30, NC60), Precitec, BOCI, OSPRI (Ospree 305) and Hans / HSG / Bodor-compatible heads.

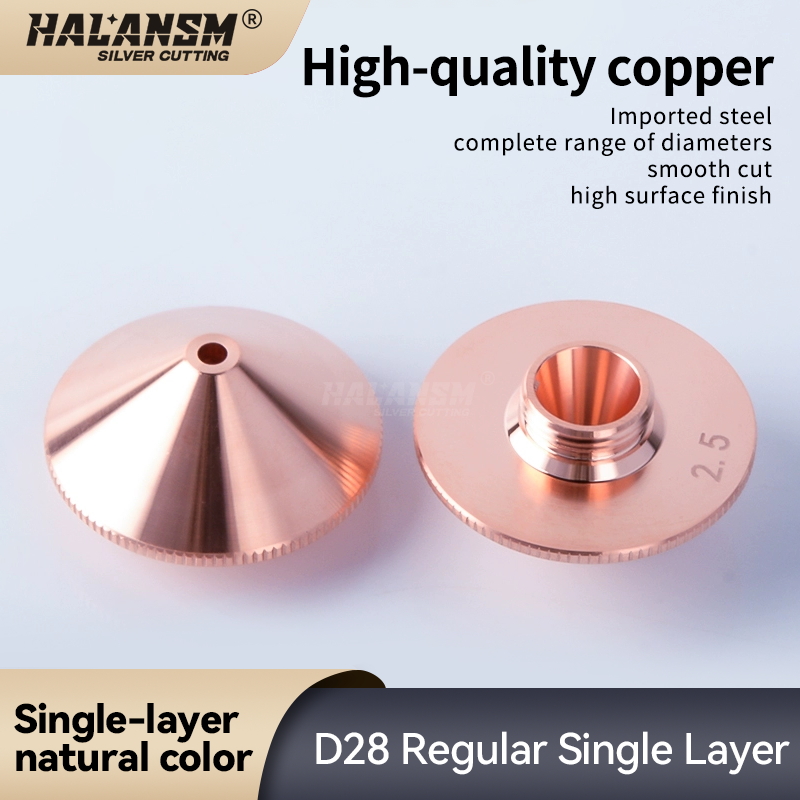

· D28 x H15 x M11: standard fit for RayTools, WSX, Precitec, BOCI, OSPRI and Hans/HSG M11 ceramic-ring heads.
· D32 x H15 x M14: larger-interface fit for RayTools, WSX, Precitec and Hans/HSG heads.
RayTools, WSX, Precitec, BOCI, OSPRI, Hans and HSG are third-party trademarks. HALANSM® HLN-REG-D28D32 is an aftermarket / compatible replacement part, not an OEM original. For heads not listed here, provide your head model and original part number for fitment check.
Selection Guide
Confirm three dimensions in order — outer diameter, thread, then aperture — before ordering. Mixing M11 and M14, or D28 and D32, will prevent proper seating against the ceramic ring.
· Step 1 — Match OD and thread: D28 uses M11; D32 uses M14. Measure the old nozzle or the ceramic-ring seat.
· Step 2 — Pick layer by gas: single layer with nitrogen or air; double layer with oxygen for carbon steel.
· Step 3 — Pick aperture by thickness and power: smaller bores (1.0 – 1.5 mm) for thin sheet and fine edges; larger bores (2.5 – 5.0 mm) for medium and thick plate.
· Step 4 — Choose finish: natural copper for general work; chrome plated for high-power, high-pressure duty.
Installation and Handling
· Power down the laser system, lock out the cutting head and release any residual gas pressure.
· Remove the worn nozzle with the correct wrench. Do not lever against the ceramic ring.
· Clean the mounting seat and ceramic-ring thread, removing slag and debris before fitting the new part.
· Seat the new HALANSM® nozzle by hand and thread it onto the M11 or M14 interface. Hand-tighten only — do not over-tighten.
· Run a light test cut to verify gas flow, concentricity and cut quality before production.
· Store spares in the original sealed packaging in a dry place to avoid oxidation and contamination.
Frequently Asked Questions
What laser cutting heads fit the HALANSM® HLN-REG-D28D32 regular nozzle?
It fits RayTools, WSX, Precitec, BOCI, OSPRI and Hans/HSG-compatible heads using the D28 M11 or D32 M14 interface. Provide your head model and original part number for fitment check.
What is the difference between single layer and double layer?
Single layer runs nitrogen or air for stainless, aluminum and non-ferrous metals. Double layer runs oxygen for carbon steel, with a stabilizing annular gas gap for cleaner edges.
Is chrome plating worth choosing?
Chrome plating increases surface hardness and oxidation resistance, which helps under high-power, high-pressure cutting. Natural copper remains the right choice for general use.
How do I choose between D28 M11 and D32 M14?
D28 M11 is the common size for most RayTools, WSX, Precitec, BOCI, OSPRI and Hans/HSG heads. D32 M14 suits larger-interface heads. Measure the old nozzle before ordering.
Which aperture should I use for my sheet thickness?
Use 1.0 – 1.5 mm for thin sheet and fine finishes, 2.0 – 3.0 mm for general work, and 4.0 – 6.0 mm for thicker plate. Exact aperture SKU depends on your setup — confirm with us.
How should I install and store replacement nozzles?
Hand-tighten only after cleaning the seat; do not over-tighten. Store in sealed original packaging in a dry place, and replace at the first sign of bore wear or slag build-up.
Related Products
From the official HALANSM® laser consumables catalog:
Changzhou Halan Machinery Technology Co., Ltd. focuses on high-quality plasma cutting and welding consumables. We have wide range of Plasma consumable accessories those are made by high grade of material and made by latest method with technology.
