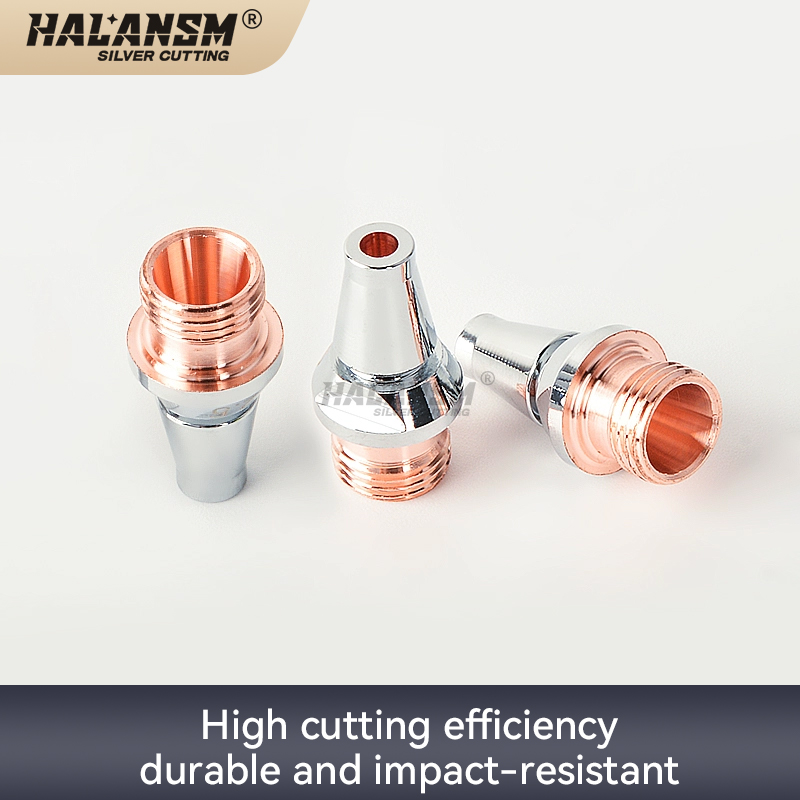

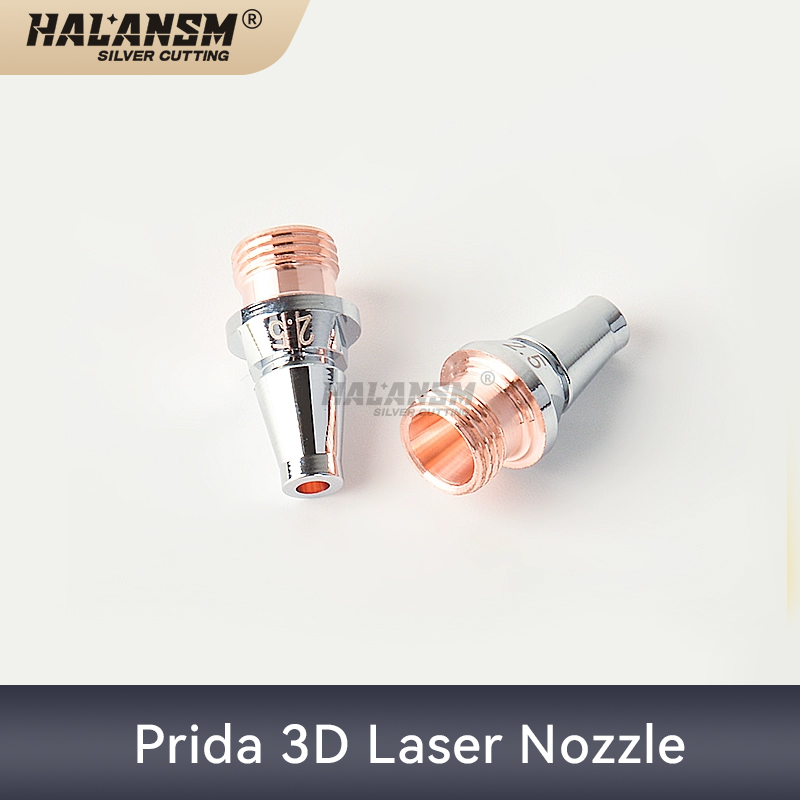

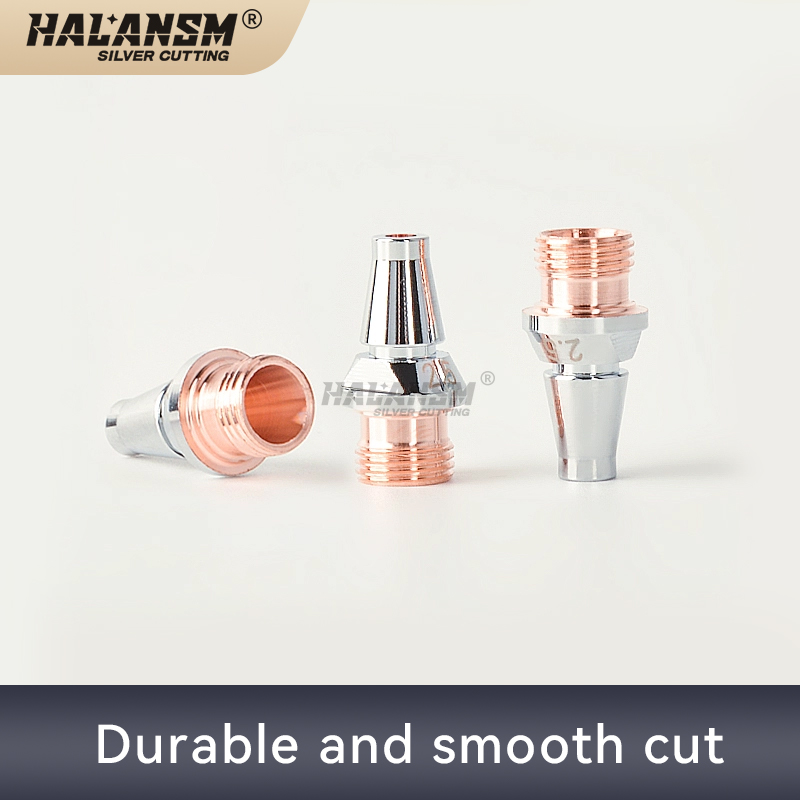

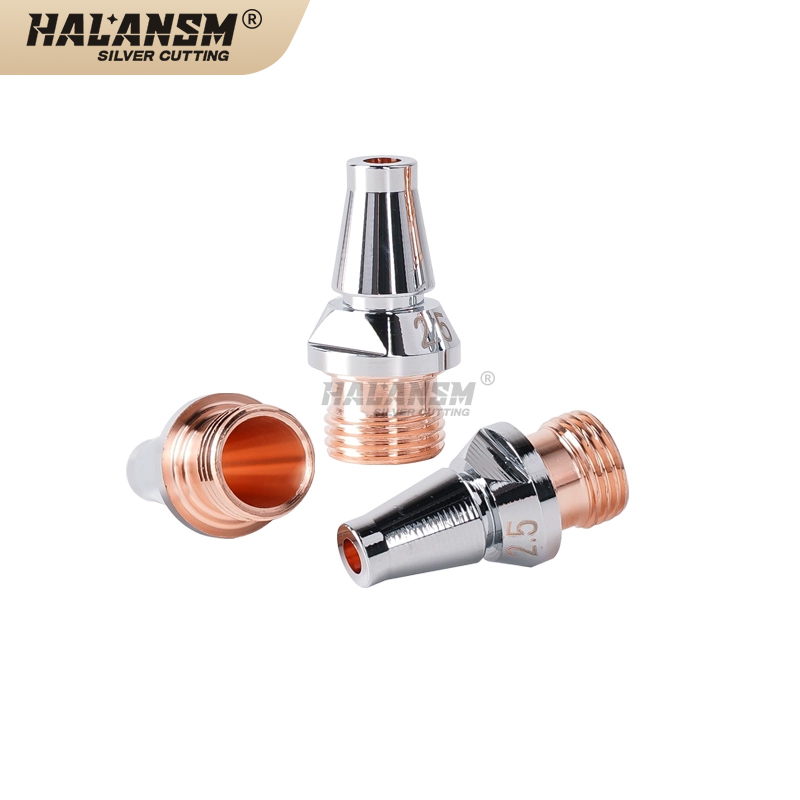

HALANSM® HLN-PRIMA3D-M8-H19S aftermarket D10 x H19 x M8 chrome single-layer nozzle for PRIMA Optimo, FiberBLADE, Rapido and Platino 3D heads, stable gas flow.
HLN-PRIMA3D-M8-H19S
HALANSM®
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Type
3D Single-Layer Laser Cutting Nozzle

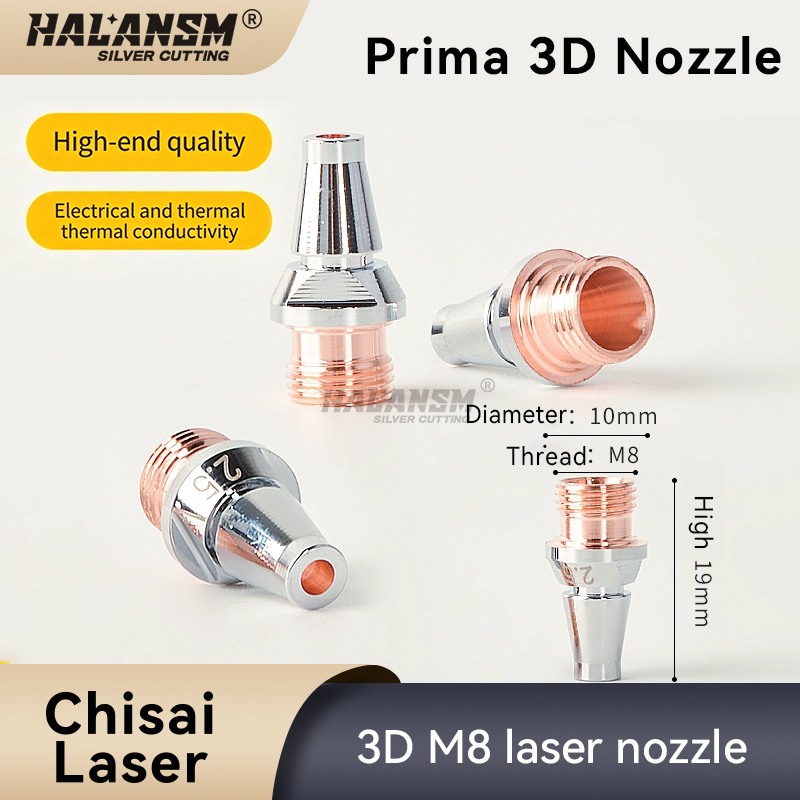

Outer Diameter (OD)
10 mm
Height (H)
19 mm
Mounting Thread
M8 x 0.75
Bore Caliber
1.0 / 1.2 / 1.5 / 2.0 / 2.5 mm (range 0.8 to 3.0 mm)
Material
High-Purity Copper, Chrome-Plated Outer Surface
Reference OEM Part No.
485.73.452
Assist Gas
N2 and O2
Application
3D five-axis and tube laser cutting
HALANSM®
SILVER CUTTING
HLN-PRIMA3D-M8-H19S
HALANSM® PRIMA 3D M8 H19 Single-Layer Chrome Nozzle
Aftermarket D10 x H19 x M8 chrome-plated copper laser cutting nozzle for PRIMA Industrie 3D five-axis cutting heads.
HALANSM® HLN-PRIMA3D-M8-H19S is an aftermarket PRIMA 3D single-layer laser nozzle sized OD 10mm x H 19mm x thread M8, built for PRIMA Industrie Optimo, FiberBLADE, Rapido and Platino 3D five-axis laser heads to deliver stable assist-gas flow and clean cutting on tube, bevel and 3D contour workpieces.
Product Overview
The HLN-PRIMA3D-M8-H19S is a front-end consumable mounted at the tip of a 3D fiber laser cutting head. Its precision-bored bore collimates the assist gas jet while the tapered tip guides the focused beam through the workpiece standoff. Stable gas coverage directly controls dross adhesion, edge squareness and piercing reliability on 3D parts.
In five-axis cutting, the nozzle experiences continuous attitude changes, off-angle impact and reflected spatter. A concentric, thermally conductive nozzle preserves focus geometry and capacitive sensor calibration across complex trajectories.
Key Advantages
High Concentricity
CNC-bored bore and stepped inner wall keep the gas axis aligned with the laser focus, reducing streak marks and edge taper on 3D cuts.
Chrome-Plated Wear Surface
Hard chrome plating on the outer cone improves surface hardness, corrosion resistance and slag release, slowing tip wear in high-temperature zones.
Copper Thermal Core
High-purity copper body provides strong electrical and thermal conductivity, dissipating heat at the focus point to protect the ceramic ring and focusing lens.
Impact-Resistant 3D Profile
Reinforced conical tip and knurled mounting ring absorb incidental collision on tube and profile cutting, keeping the bore intact for repeatable cuts.
Specifications
Part Type
3D Single-Layer Laser Cutting Nozzle
Outer Diameter
10 mm
Height
19 mm
Mounting Thread
M8 x 0.75
Bore Caliber
1.0 / 1.2 / 1.5 / 2.0 / 2.5 mm (range 0.8 to 3.0 mm)
Material
High-Purity Copper, Chrome-Plated Outer Surface
Reference OEM Part No.
485.73.452
Assist Gas
N2 and O2
Application
3D five-axis and tube laser cutting
Bore, thread pitch and material align with the published PRIMA 3D nozzle form factor and supplier dimension tables. Sizes outside the standard range are available on request.
Selection Guide
All calibers share the same D10 x H19 x M8 body. Match the bore to material thickness and assist gas rather than changing the nozzle body.
Bore 1.0 to 1.5 mm: thin stainless and mild steel with N2, mirror-finish edges.
Bore 2.0 to 2.5 mm: medium plate and oxygen cutting, higher gas volume.
Bore 3.0 mm and above: thick plate and heavy dross conditions; confirm focus and gas pressure with us.
Compatible Equipment and Application
Designed as an aftermarket replacement for PRIMA Industrie 3D five-axis cutting heads, including Optimo, FiberBLADE, Rapido and Platino 3D head families, and compatible with M8-threaded 3D robot and tube cutting heads.
Applications cover 3D five-axis cutting, tube and profile cutting, bevel welding-prep contours, automotive stamping and thick-plate oxygen cutting.
PRIMA Industrie and the part number 485.73.452 are third-party identifiers used only for compatible replacement reference. This nozzle is an aftermarket part; no original-manufacturer authorization is claimed.
Provide your head model and original part number for fitment check.
Installation and Handling
1. Power down the laser and release assist-gas pressure completely.
2. Unscrew the worn nozzle and inspect the ceramic ring for cracks.
3. Clean the mounting seat and thread with compressed air; remove spatter.
4. Seat the new nozzle by hand to protect the M8 thread, then lightly tighten.
5. Recalibrate the capacitive height sensor and run a test cut.
Store nozzles in sealed packaging away from moisture and corrosive fumes. Handle by the knurled body and avoid touching the bore with fingers or tools to preserve concentricity.
Frequently Asked Questions
What laser heads fit the HALANSM® HLN-PRIMA3D-M8-H19S nozzle?
It fits PRIMA Industrie Optimo, FiberBLADE, Rapido and Platino 3D heads, plus compatible M8-threaded 3D robot and tube cutting heads. Provide your head model for fitment check.
Is the HALANSM® HLN-PRIMA3D-M8-H19S an original PRIMA nozzle?
No. It is an aftermarket replacement built to the D10 x H19 x M8 PRIMA 3D form factor. PRIMA and 485.73.452 are used only for compatibility reference.
What material is the HALANSM® HLN-PRIMA3D-M8-H19S made of?
It combines a high-purity copper body for thermal conductivity with a hard chrome-plated outer cone for wear and corrosion resistance.
Which bore caliber should I choose?
Use 1.0 to 1.5 mm for thin N2 cutting and 2.0 to 2.5 mm for O2 cutting of thicker plate. Contact us with your material and gas setup.
How do I know the nozzle needs replacement?
Replace it when the bore shows scoring or deformation, spatter clogs the channel, or cut quality drops despite clean optics.
Can I install the HALANSM® HLN-PRIMA3D-M8-H19S without a technician?
Yes. Power down, remove the old nozzle, clean the seat, hand-thread the new nozzle and recalibrate the sensor before cutting.
