HALANSM® D8 H10 M8 3D Ospri Nozzle

HALANSM®

SILVER CUTTING



HLN-OSPRI3D-M8-D8H10

HALANSM® D8 H10 M8 3D Laser Nozzle

Aftermarket copper 3D nozzle for Ospri cutting heads and tube laser machines

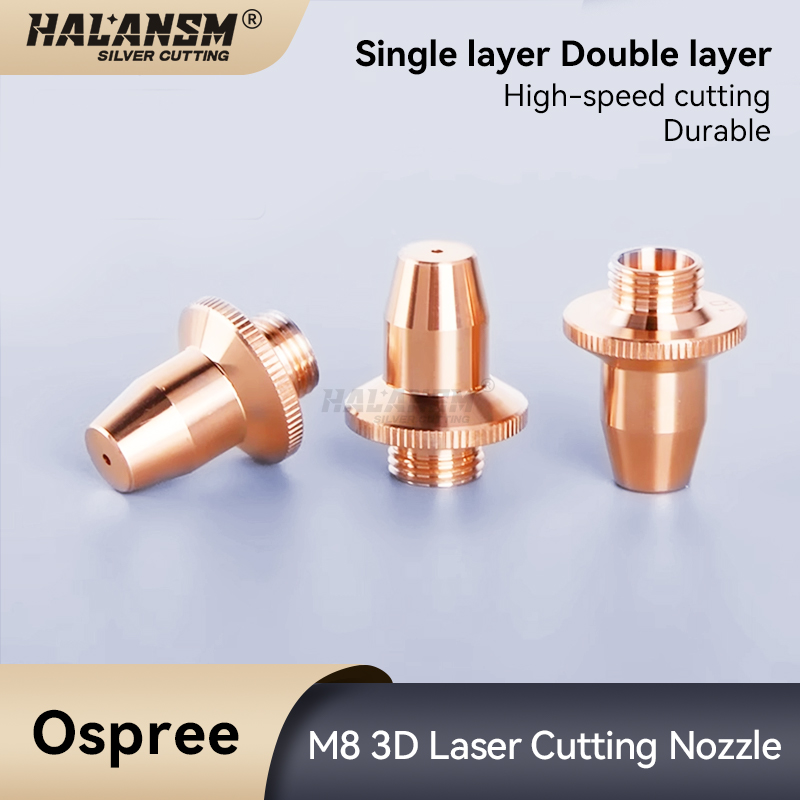

HALANSM® HLN-OSPRI3D-M8-D8H10 is an aftermarket 3D laser cutting nozzle sized OD 8 mm x height 10 mm x thread M8, built for Ospri (Ospree) OSPRI 305 series heads and compatible tube-cutting lasers to deliver stable assist-gas flow and clean cuts on pipes and shaped profiles.

Product Overview

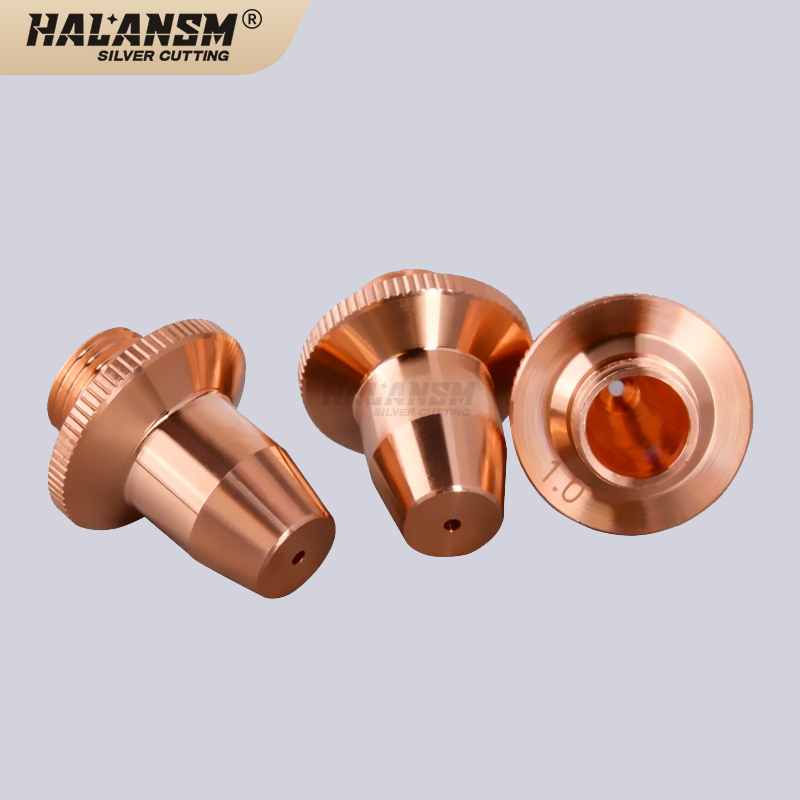

The HLN-OSPRI3D-M8-D8H10 mounts at the front of an Ospri 3D or tube-cutting laser head. Its bullet-shaped tip and concentric bore direct assist gas to eject molten material while the head pivots around the workpiece. The M8 thread and knurled seat keep the nozzle seated under continuous duty.

Key Advantages

High-Purity Copper Body

Machined from high-purity copper for strong thermal and electrical conductivity during high-speed cutting.

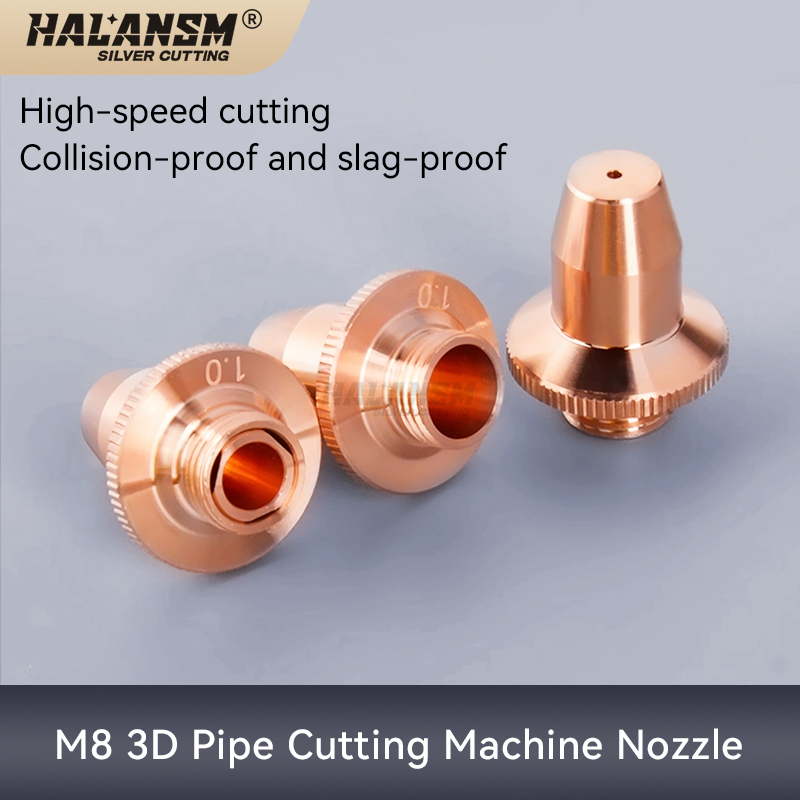

Bullet Tip, Collision Resistant

Streamlined bullet profile reduces snagging on the workpiece and resists impact during 3D motion.

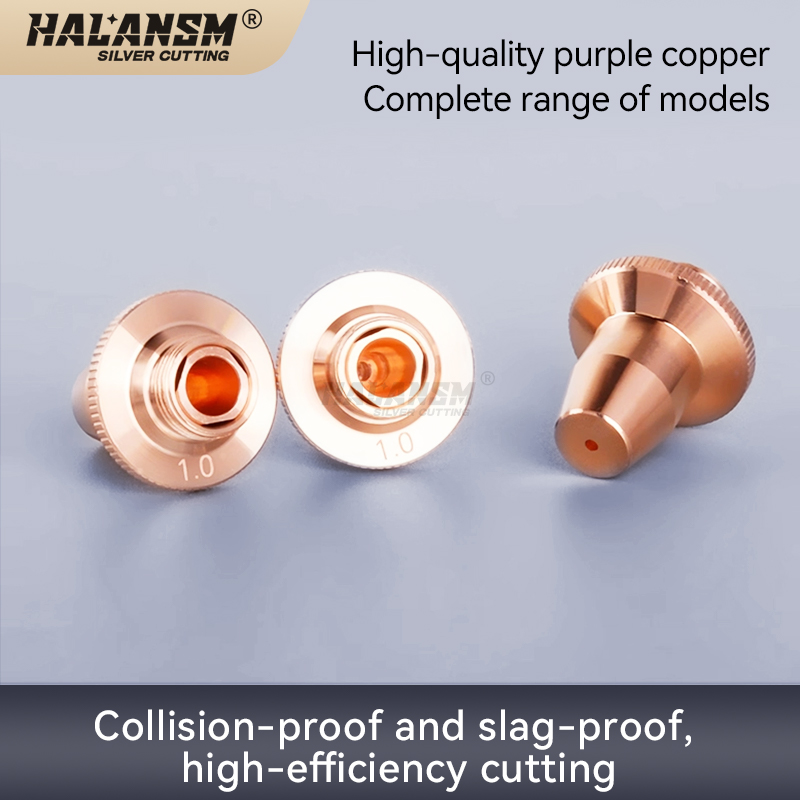

Single or Double Layer

Available in single layer for nitrogen cutting and double layer for oxygen work. Confirm exact specs with us.

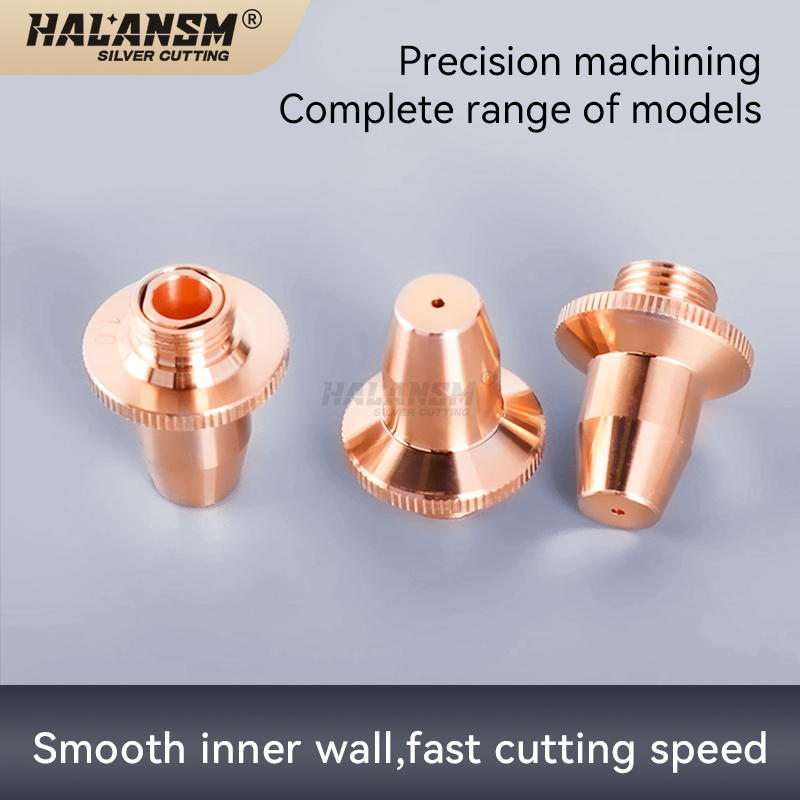

Polished Bore, Smooth Flow

Smooth inner wall maintains laminar gas flow for clean edges and less spatter adhesion.

Specifications

Part Type	3D Laser Cutting Nozzle
Outer Diameter	8 mm
Height	10 mm
Mounting Thread	M8
Material	High-purity copper
Layer Type	Single layer / Double layer
Bore Caliber	1.0 / 1.5 / 2.0 / 2.5 / 3.0 mm
Application	Fiber laser 3D / tube cutting

Compatible Equipment and Application

Compatible with aftermarket Ospri (Ospree) OSPRI 305 series 3D cutting heads and other tube-cutting heads using an M8 nozzle interface. Provide your head model and original part number for fitment check.

M8 size family (do not substitute M6 / M9 / M11 / M12 threads):

OD 8 mm	D8 family, height 10 mm, thread M8, Ospri / tube-cutting heads (this model)
OD 10 mm	D10 family, height 19 mm, thread M8, PRIMA 3D heads
OD 12 mm	D12 family, height 10 mm, thread M8, precision 3D single-layer heads
OD 15 mm	D15 family, height 18 - 22 mm, thread M11, bevel / 3D heads

Selection Guide

Use 1.0 - 1.5 mm for thin-wall tube with nitrogen, and 2.0 - 3.0 mm for thicker wall with oxygen. Confirm exact specs with us for your material and gas.

Choose single layer for nitrogen and fine-finish cutting; choose double layer for oxygen and heavy-duty cutting. Confirm exact specs with us.

Installation and Handling

1. Power down the laser and release all assist-gas pressure.

2. Unscrew the worn nozzle from the ceramic ring or nozzle seat.

3. Clean the mounting seat and ceramic interface with a lint-free cloth.

4. Align the M8 thread and hand-tighten the new nozzle; do not overtighten.

5. Recalibrate the capacitive sensor, then run a low-power test cut on scrap.

6. Store spares in a dry, sealed container away from dust and moisture.

Frequently Asked Questions

What laser heads fit the HALANSM® HLN-OSPRI3D-M8-D8H10 3D nozzle?

It fits Ospri OSPRI 305 series and compatible 3D tube-cutting heads with an M8 nozzle interface. Provide your head model and original part number for exact fitment.

Is the HLN-OSPRI3D-M8-D8H10 an original Ospri part?

No. It is an aftermarket replacement made to the D8 H10 M8 form factor. Ospri and OSPRI are third-party trademarks used only for fitment identification.

What material is the HLN-OSPRI3D-M8-D8H10 made of?

High-purity copper with a polished bore. Layer type and surface finish vary by SKU; confirm exact specs with us.

How do I choose the right bore caliber?

Use 1.0 - 1.5 mm for thin-wall tube with nitrogen and 2.0 - 3.0 mm for thicker wall with oxygen. Confirm exact specs with us.

When should I replace the 3D nozzle?

Replace it when the bore clogs with slag, the bullet tip deforms, or cut quality drops. Timely replacement protects the ceramic ring.

Can I install the HLN-OSPRI3D-M8-D8H10 myself?

Yes. Power down, remove the old nozzle, clean the seat, hand-tighten the new nozzle, recalibrate the sensor, and test cut.
