HALANSM® 3D M8 M11 Laser Cutting Nozzle

HALANSM®

SILVER CUTTING



HLN-MULTI-3D

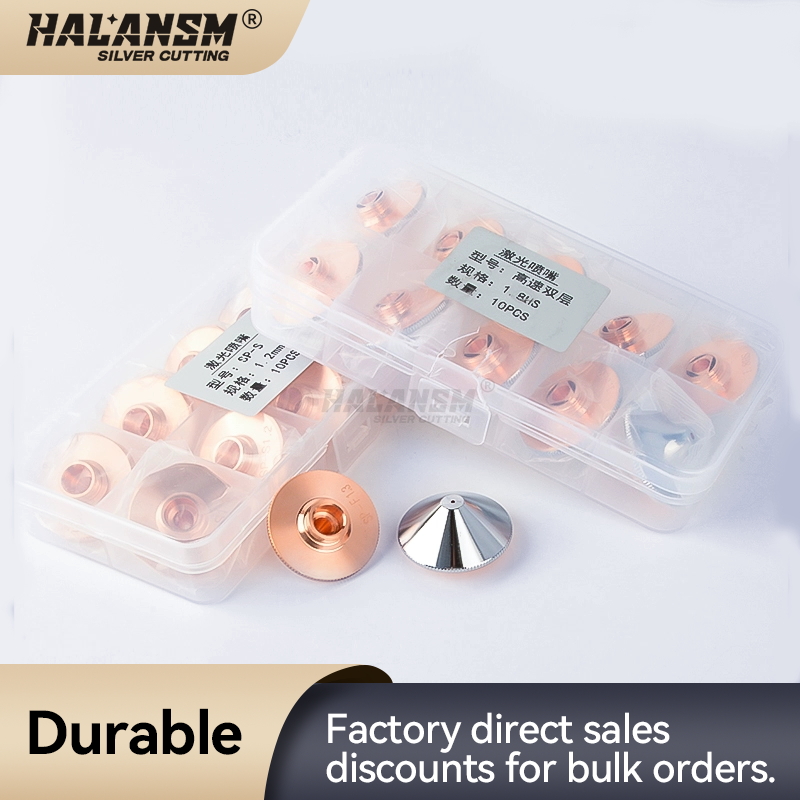

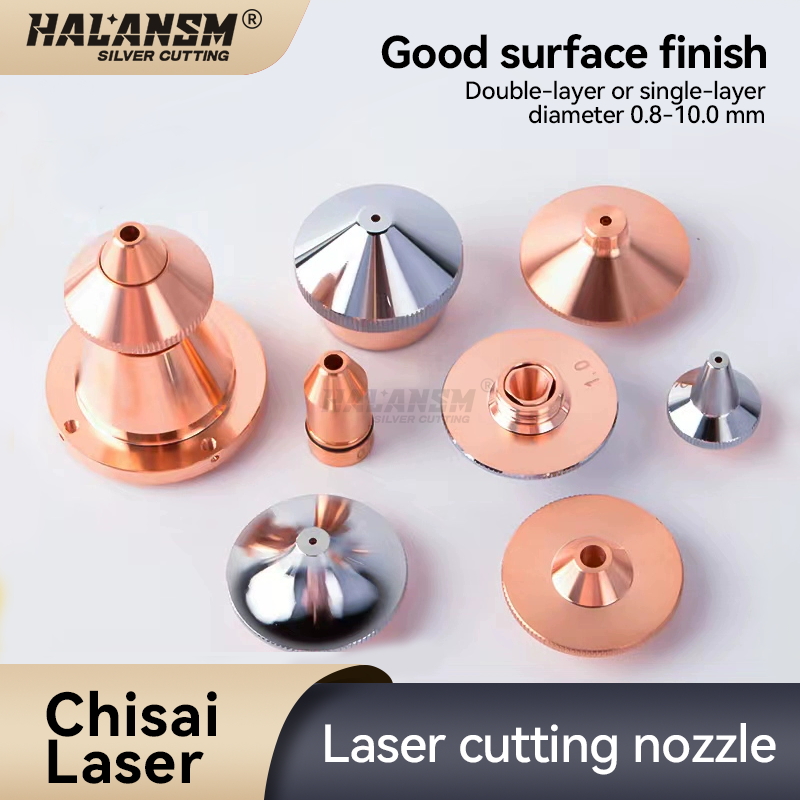

HALANSM® 3D Laser Nozzle Family, M8 and M11

Aftermarket copper 3D nozzles for Han's, Wanshunxing, Bodor, Jiaqiang and DNE cutting heads

HALANSM® HLN-MULTI-3D is an aftermarket 3D laser nozzle family offered in M8 and M11 threads, built for Han's (DNE), Wanshunxing, Bodor, Jiaqiang (Empower) and compatible RayTools 3D heads to deliver stable assist-gas flow during five-axis and tube cutting. Exact outer diameter and height depend on the selected SKU.

Product Overview

Each HLN-MULTI-3D SKU mounts at the front of a 3D or tube-cutting laser head. Its conical tip and concentric bore direct assist gas to eject molten material as the head tilts and rotates. Choose the thread and bore that match your head, then confirm exact specs with us before ordering.

Key Advantages

One Family, Multiple Threads

M8 and M11 SKUs cover the common 3D head interfaces, reducing the number of part numbers you need to stock.

High-Purity Copper

Copper body with optional chrome plating for thermal conductivity, wear resistance and a smooth inner wall.

Single or Double Layer

Single layer for nitrogen cutting and double layer for oxygen work. Confirm exact specs with us.

Batch Consistency

CNC-machined bores are inspected for concentricity so performance stays repeatable across reorder batches.

Specifications

Core parameters (family level):

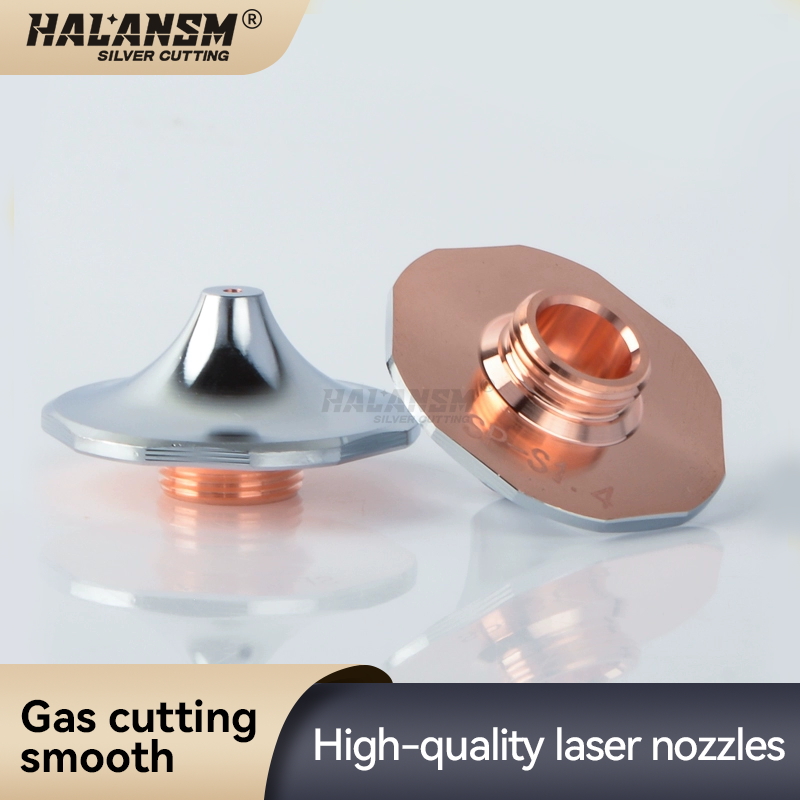

Part Type	3D Laser Cutting Nozzle
Material	High-purity copper, chrome plating optional
Layer Type	Single layer / Double layer

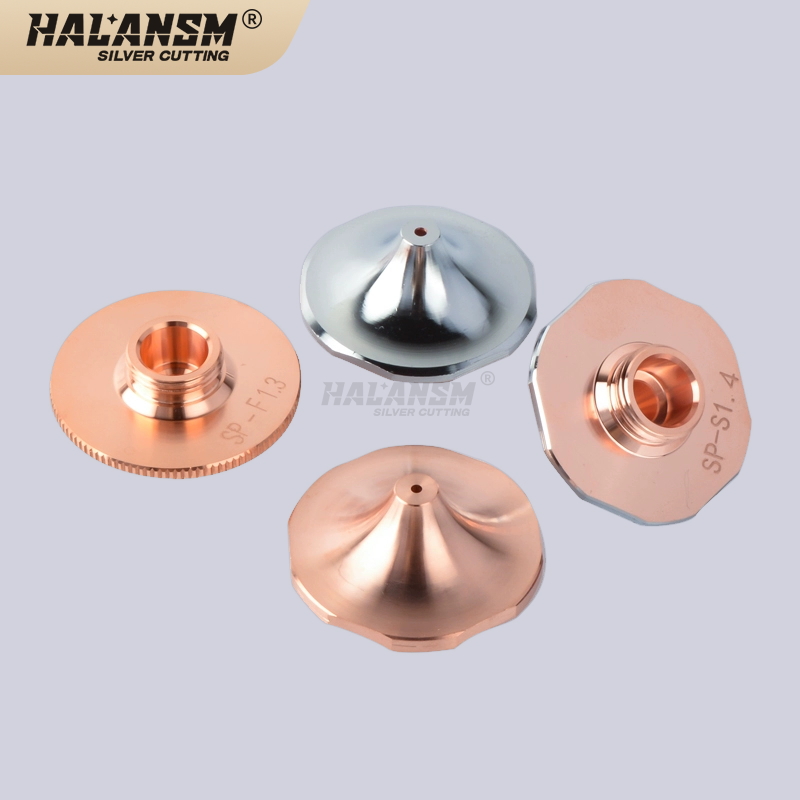

Bore Caliber	0.8 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 mm
Thread	M8 or M11 (per SKU)
Application	Fiber laser 3D / five-axis / tube cutting

Dimensions such as outer diameter and height are SKU-specific and follow the size families listed in the next section. Confirm exact specs with us for the SKU you intend to order.

Compatible Equipment and Application

Compatible with aftermarket Han's (DNE), Wanshunxing, Bodor, Jiaqiang (Empower) and other heads using an M8 or M11 nozzle interface, including heads compatible with RayTools BM/BS 3D families. Provide your head model and original part number for fitment check.

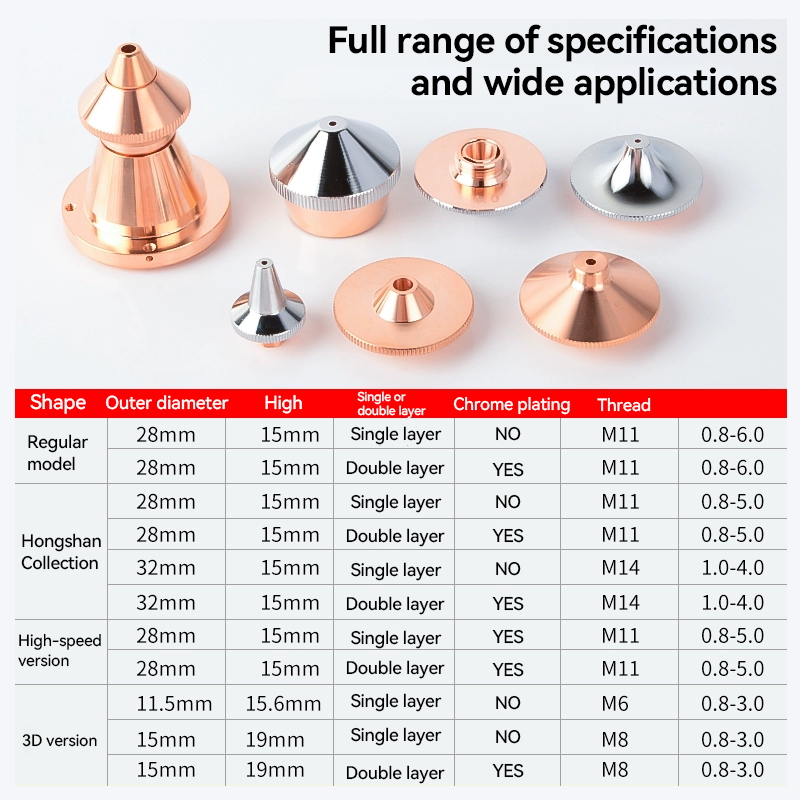

Common M8 size family:

OD 8 mm	D8 family, height 10 mm, thread M8 (Ospri / tube-cutting heads)
OD 10 mm	D10 family, height 19 mm, thread M8 (PRIMA 3D heads)
OD 12 mm	D12 family, height 10 mm, thread M8 (precision 3D single-layer heads)
OD 15 mm	D15 family, height 19 mm, thread M8 (Jiaqiang / Empower 3D)

Common M11 size family:

OD 15 mm	D15 family, height 18 or 22 mm, thread M11 (Empower / RayTools 3D and bevel heads)
OD 28 mm	D28 family, thread M11 (standard and bevel nozzles for WSX / RayTools heads)

Selection Guide

Match the thread first: M8 for the Han's, Wanshunxing, Bodor, Jiaqiang and Ospri-style heads; M11 for the Empower / RayTools and WSX 3D families. Then match outer diameter, height and bore to your original nozzle.

Use 0.8 - 1.5 mm for thin sheet with nitrogen and 2.0 - 3.0 mm for thicker plate with oxygen. Confirm exact specs with us for your material, gas and head model.

Installation and Handling

1. Power down the laser and release all assist-gas pressure.

2. Unscrew the worn nozzle from the ceramic ring or nozzle seat.

3. Clean the mounting seat and ceramic interface with a lint-free cloth.

4. Align the thread by hand and tighten only until snug; do not overtighten.

5. Recalibrate the capacitive sensor, then run a low-power test cut on scrap.

6. Store spares in a dry, sealed container away from dust and moisture.

Frequently Asked Questions

What laser heads fit the HALANSM® HLN-MULTI-3D 3D nozzle?

It fits Han's (DNE), Wanshunxing, Bodor, Jiaqiang (Empower) and compatible RayTools 3D heads in M8 or M11. Provide your head model and original part number for exact fitment.

Is the HLN-MULTI-3D an original Han's, Wanshunxing or Bodor part?

No. It is an aftermarket replacement made to common 3D form factors. Brand names are used only for fitment identification.

What material is the HLN-MULTI-3D made of?

High-purity copper, with optional chrome plating. Layer type and finish vary by SKU; confirm exact specs with us.

How do I choose between M8 and M11?

Match your head's original thread first, then outer diameter and height. Provide your head model and original part number for fitment check.

When should I replace the 3D nozzle?

Replace it when the bore clogs with slag, the tip deforms, or cut quality drops. Timely replacement protects the ceramic ring.

Can I install the HLN-MULTI-3D myself?

Yes. Power down, remove the old nozzle, clean the seat, hand-tighten the new nozzle, recalibrate the sensor, and test cut.

Related Products

• HLN-CR-D195M8 — 3D Ceramic Ring D19.5 x M8 for RayTools and OSPRI 3D cutting heads.

• HLN-CR-D41M11 — JQ-D41 Ceramic Ring for Empower BS12K laser cutting head.

• HLN-CR-2832 — 28 x 32 Ceramic Ring for fiber laser cutting heads.

• HLN-JQ3D-M8-D15H19 — Jiaqiang / Empower D15 H19 M8 3D Nozzle, single or double layer.

• HLN-OSPRI3D-M8-D8H10 — D8 H10 M8 3D Nozzle for Ospri OSPRI 305 and tube lasers.

• HLN-CL-27941 — 27.9 x 4.1 Protective Lens for RayTools BM110 and BT240 heads.





All models above are real HALANSM® products. Match the window size and power rating to your specific head before ordering.



---
