HALANSM® D15 H22 M11 3D Bevel Laser Nozzle

Single and double layer copper 3D bevel nozzle for Empower and RayTools-compatible fiber laser cutting heads.

HALANSM® HLN-BK-D15H22M11 is an aftermarket 3D bevel laser cutting nozzle sized OD 15 mm x height 22 mm x thread M11, built for HGTECH and Pentium 3D bevel cutting heads and compatible RayTools, WSX, BOCI, and Ospri heads to deliver stable gas flow and clean bevel cuts on tube and sheet.

Product Overview

The HLN-BK-D15H22M11 is a precision-machined front-end consumable that mounts at the tip of a 3D bevel fiber laser cutting head. Its bore and gas channel control assist-gas coverage during angled cutting, directly affecting slag adhesion and bevel-edge quality. Replacing a worn nozzle restores concentric gas flow and repeatable cut quality.

Key Advantages

High-Purity Copper Body

Machined from high-purity copper for excellent thermal and electrical conductivity, dissipating heat at the focused spot.

Chrome-Plated Wear Surface

Hard chrome plating on the bore and tip improves surface hardness, corrosion resistance, and slag resistance.

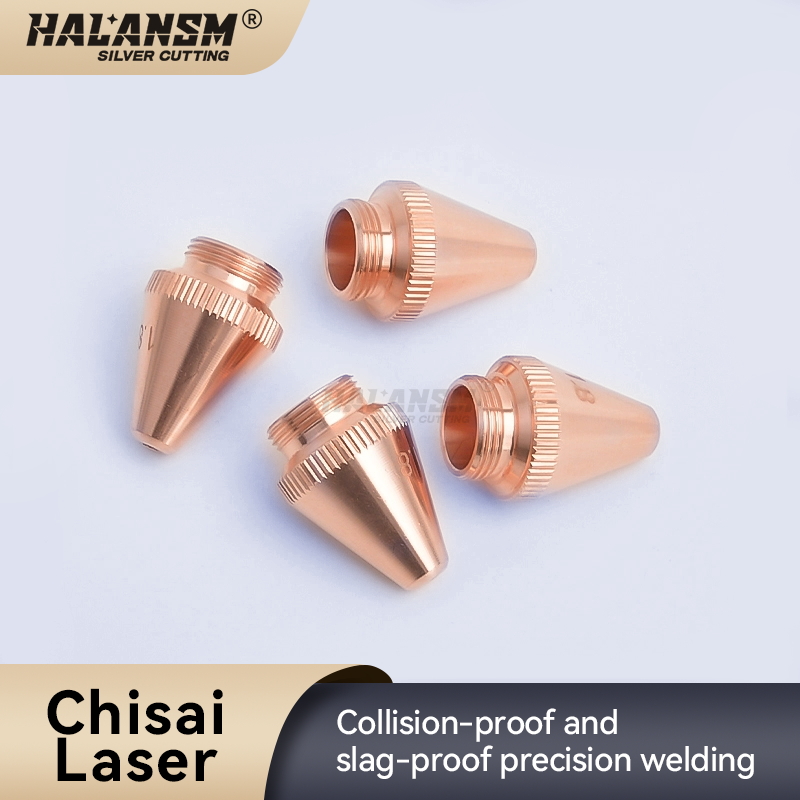

Collision and Slag Proof

Reinforced conical tip and knurled body survive contact events and resist spatter buildup in heavy-duty 3D cutting.

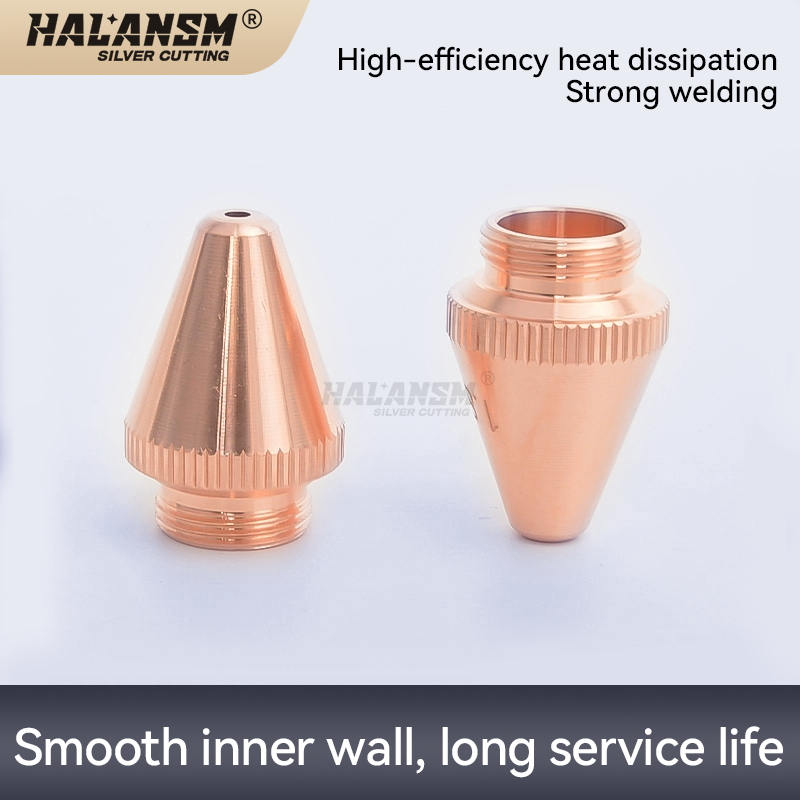

Precision Bore, Smooth Flow

Polished inner wall keeps laminar assist-gas flow for clean, oxide-free bevel edges across the caliber range.

Specifications

Part Type	3D Bevel Laser Cutting Nozzle

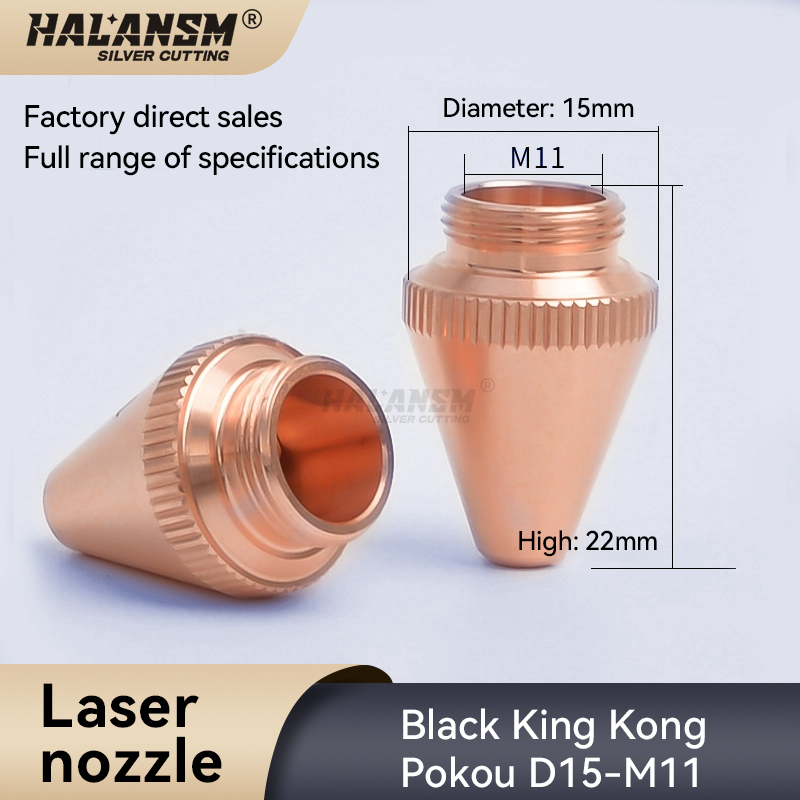

Outer Diameter	15 mm
Height	22 mm
Mounting Thread	M11
Material	High-purity copper, chrome-plated tip
Layer Type	Single layer / Double layer (confirm exact specs with us)

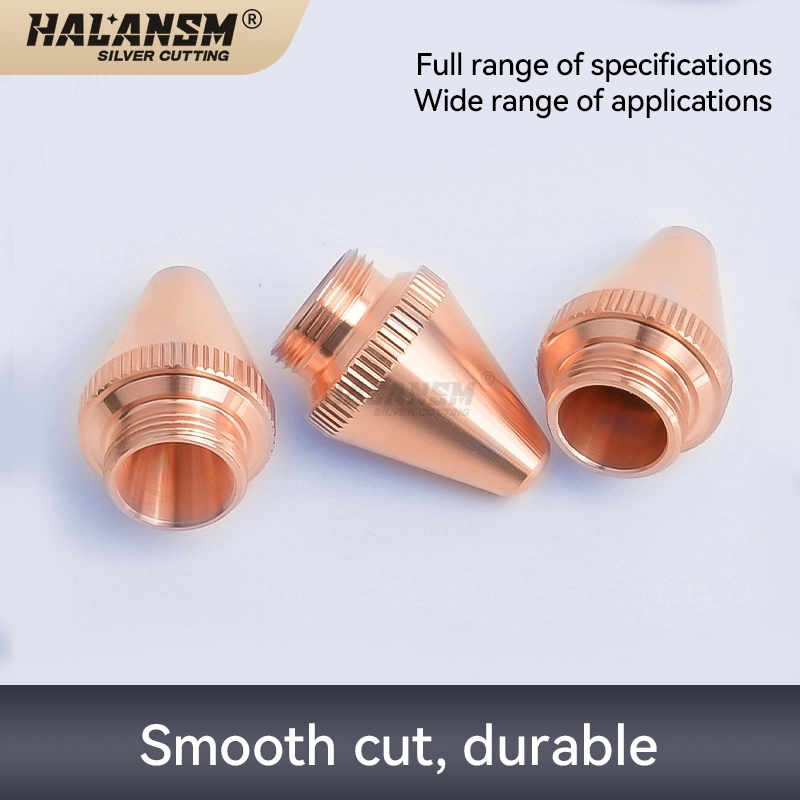

Bore Caliber	1.0 / 1.5 / 2.0 / 2.5 mm (full range 1.0 - 3.0 mm)
Application	Fiber laser bevel / 3D / tube cutting

Compatible Equipment and Application

Compatible with aftermarket HGTECH (Huagong) bevel and five-axis heads, Pentium Laser heads, and other cutting heads using an M11 nozzle interface. Provide your head model and original part number for fitment check.

Verified size family (do not mix with M8 / M12 / M14 threads):

OD 15 mm	D15 family, height 22 mm, thread M11, bevel / 3D heads
OD 15 mm	D15 family, height 18 mm, thread M11, 3D bevel heads (Empower / RayTools style)
OD 12 mm	D12 family, height 10 mm, thread M8, 3D single-layer nozzles
OD 10 mm	D10 family, height 19 mm, thread M8, PRIMA 3D nozzles

Selection Guide

Choose the caliber by material and assist gas: use 1.0 - 1.5 mm for thin sheet with nitrogen, and 2.0 - 2.5 mm for thicker plate with oxygen. Confirm exact specs with us for your process.

Choose single layer for nitrogen and mirror-finish cutting; choose double layer for oxygen and thick-plate cutting. Confirm exact specs with us.

Installation and Handling

1. Power down the laser and release all residual assist-gas pressure.

2. Unscrew the worn nozzle from the ceramic ring or nozzle seat.

3. Clean the mounting seat and ceramic interface with lint-free cloth or compressed air.

4. Align the M11 thread and hand-tighten the new nozzle; do not overtighten.

5. Recalibrate the capacitive height sensor, then run a low-power test cut.

6. Store spare nozzles in a dry, sealed container away from dust and moisture.

Frequently Asked Questions

What laser heads fit the HALANSM® HLN-BK-D15H22M11 bevel nozzle?

It fits HGTECH and Pentium 3D bevel heads plus compatible M11-interface heads from RayTools, WSX, BOCI, and Ospri. Provide your head model for exact fitment.

Is the HLN-BK-D15H22M11 an original HGTECH or Pentium part?

No. It is an aftermarket replacement made to the D15 H22 M11 form factor. HGTECH and Pentium are third-party trademarks used only for fitment identification.

What material is the HLN-BK-D15H22M11 made of?

High-purity copper with a hard chrome-plated tip for heat dissipation, wear resistance, and slag resistance.

How do I choose the right bore caliber?

Use 1.0 - 1.5 mm for thin sheet with nitrogen and 2.0 - 2.5 mm for thicker plate with oxygen. Confirm exact specs with us.

When should I replace the bevel nozzle?

Replace it when slag blocks the bore, the tip deforms from collision, or bevel-edge quality declines. Timely replacement protects the ceramic ring.

Can I install the HLN-BK-D15H22M11 myself?

Yes. Power down, remove the old nozzle, clean the seat, hand-tighten the new nozzle, recalibrate the sensor, and test cut.
