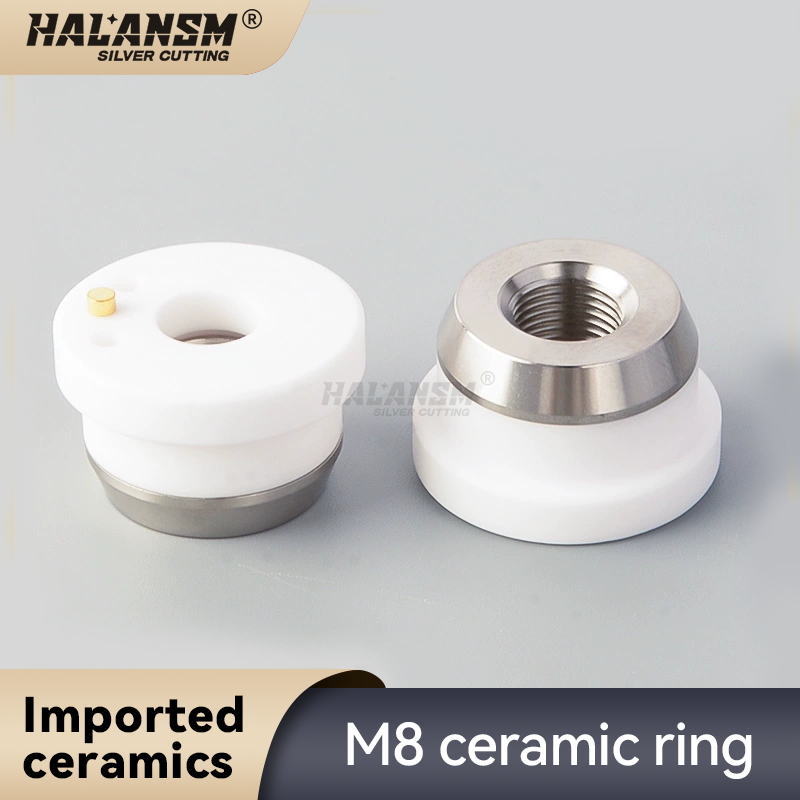

HALANSM® 3D Ceramic Ring Series M8 (D17.8 / D19.5 / D20.6 / D21.4) and D41
HALANSM® 3D Ceramic Ring Series are aftermarket capacitive-sensing ceramic bodies sized OD17.8 / 19.5 / 20.6 / 21.4 mm x M8 and OD41 mm x M10 / M11, built for RayTools, OSPRI, Bodor and Empower (Jiaqiang) BS12K 3D robotic, bevel, pipe and profile cutting heads to deliver stable height-sensing signals and accurate nozzle centering.
Product Overview
The 3D ceramic ring sits between the nozzle and the capacitive height sensor inside the cutting head. It electrically isolates the sensing circuit from the metal nozzle, carries the capacitance signal through a gold-plated contact pin, and keeps the nozzle concentric with the laser axis during high-speed multi-axis motion. A cracked, chipped or contaminated ring causes height-sensing drift, nozzle collisions and wavy cuts, so consistent replacement protects the entire cutting head.
Key Advantages
Stable Capacitive Signal
Gold-plated contact pin and copper-alloy mounting ring deliver low-noise signal transmission for reliable auto-focus and collision avoidance.
High-Temperature Ceramic
Imported alumina / zirconia ceramic body resists thermal warping and signal drift under continuous high-power 3D cutting.
Precision Centering
Tight-tolerance M8 / M10 thread and machined geometry keep the nozzle centered, stabilizing focal position and assist-gas flow.
Anti-Slag Durability
Rose-gold oxidation-resistant metal ring and chamfered ceramic edges reduce spatter adhesion and thread wear during demanding 3D operations.
Specifications by SKU
Model
OD (mm)
Height (mm)
Thread
Primary Fit
Notes
HLN-CR-3D178
17.8
12.5 - 12.8
M8 x 0.75
OSPRI 3D (FC-11)
Slim body for narrow-angle robotic cutting
HLN-CR-D195M8
19.5
12.4 - 12.5
M8 x 0.75
RayTools 3D-A/B, OSPRI 3D, Empower 3D, JQ-3D
Primary 3D-M8 size (RayTools 120572008B)
HLN-CR-3D206
20.6
13.5
M8 x 0.75
Bodor 3D tube / profile heads
Also referenced as Bond 3D convex
HLN-CR-3D214
21.4
12.8 - 13.0
M8 x 0.75
OSPRI 3D (FC-40), RayTools BD04K/BD08K
Some sources list H12.9; confirm exact height
HLN-CR-3D215
21.5
14.0
M8 x 0.75
OSPRI 3D (FC-218)
Slightly taller than D21.4; not interchangeable
HLN-CR-D41M11 / M10
41
34 - 48
M10 or M11
Empower (Jiaqiang) BS12K
Thread and height vary by head sub-model; confirm with supplier
Metal ring: copper alloy, rose-gold anti-oxidation surface
Contact: gold-plated pin for stable, low-noise signal
Insulation resistance: greater than 1000 M Ohm
Function: capacitive height-sensing signal transmission and electrical isolation
Application: 3D robotic, bevel, pipe, profile and tube cutting
Confirm exact OD x height x thread with us before ordering; do not assume sizes by brand alone.
Compatible Equipment / Application
Primary fits by SKU:
· D17.8 M8: OSPRI 3D-series robotic and pipe-cutting heads (FC-11).
· D19.5 M8: RayTools 3D-A / 3D-B, OSPRI 3D, Empower 3D and JQ-3D heads.
· D20.6 M8: Bodor 3D tube-cutting and profile-processing heads.
· D21.4 / D21.5 M8: OSPRI 3D FC-40 / FC-218 and newer 3D heads; RayTools BD04K, BD08K.
· D41: Empower (Jiaqiang) BS12K and related 3D cutting heads.
RayTools, OSPRI, Bodor, Empower and Jiaqiang are third-party trademarks. HALANSM® 3D ceramic rings are aftermarket / compatible replacement parts, not OEM factory parts. For unlisted heads, provide your head model and original part number for fitment check.
Selection Guide: 3D Ceramic Ring Size Family
All sizes below use the M8 thread family except D41 (M10 / M11). Outer diameter and height must match your old ring exactly:
· D17.8 x M8: slim 3D body for tight-angle robotic cutting (OSPRI 3D).
· D19.5 x M8: standard 3D body, the most common 3D-M8 size (RayTools / OSPRI / Empower / JQ).
· D20.6 x M8: mid-size 3D body for Bodor 3D tube cutting.
· D21.4 / D21.5 x M8: larger 3D body for OSPRI FC-40 / FC-218; D21.5 is taller and not a substitute for D21.4.
· D28 / D32 x M11 / M14: 2D standard cutting heads (different thread family, not interchangeable with M8).
· D41 x M10 or M11: large-format Empower / Jiaqiang BS12K sensing body.
Measure the old ring or send its markings and head model for a confirmed match.
Installation and Handling
· Power down the laser and release cutting-head pressure before opening the nozzle assembly.
· Remove the old ring by its metal ring; never grip the bare ceramic body.
· Clean the mounting seat, M8 / M10 thread and sensor surface from carbon and metal debris with isopropyl alcohol.
· Align the new HALANSM® ring by hand, thread it in straight, then hand-tighten only.
· Do not over-tighten; excess torque cracks the zirconia body.
· Inspect the gold contact pin for oxidation, then run a calibration and test cut to verify sensing stability.
Frequently Asked Questions
What laser heads fit the HALANSM® D19.5 M8 3D ceramic ring?
It fits RayTools 3D-A / 3D-B, OSPRI 3D, Empower 3D and JQ-3D heads using a 19.5mm seat with M8 thread. Provide your head model for fitment check.
How do I choose between D17.8, D19.5, D20.6 and D21.4 M8 rings?
Match the old ring's outer diameter and height exactly. D19.5 is the standard 3D size; D17.8 is slimmer for tight angles, D20.6 and D21.4 are larger bodies for Bodor and OSPRI 3D heads.
What material is the HALANSM® 3D ceramic ring made from?
Imported high-purity alumina or zirconia ceramic with a copper-alloy mounting ring and a gold-plated contact pin for stable signal transmission.
Why does a worn ceramic ring cause cutting problems?
Cracks, chips or contamination disrupt capacitive sensing, causing height drift, nozzle collisions, sensor alarms and wavy cut edges. Replace at the first sign of damage.
Is the D41 ring M10 or M11 thread?
The D41 body for Empower / Jiaqiang BS12K appears as M10 in some head sub-models and M11 in others. Confirm exact specs with us before ordering.
How should I store spare ceramic rings?
Keep in original packaging, dry and cushioned. Avoid impacts and moisture. Clean contacts with isopropyl alcohol and inspect before installation.
